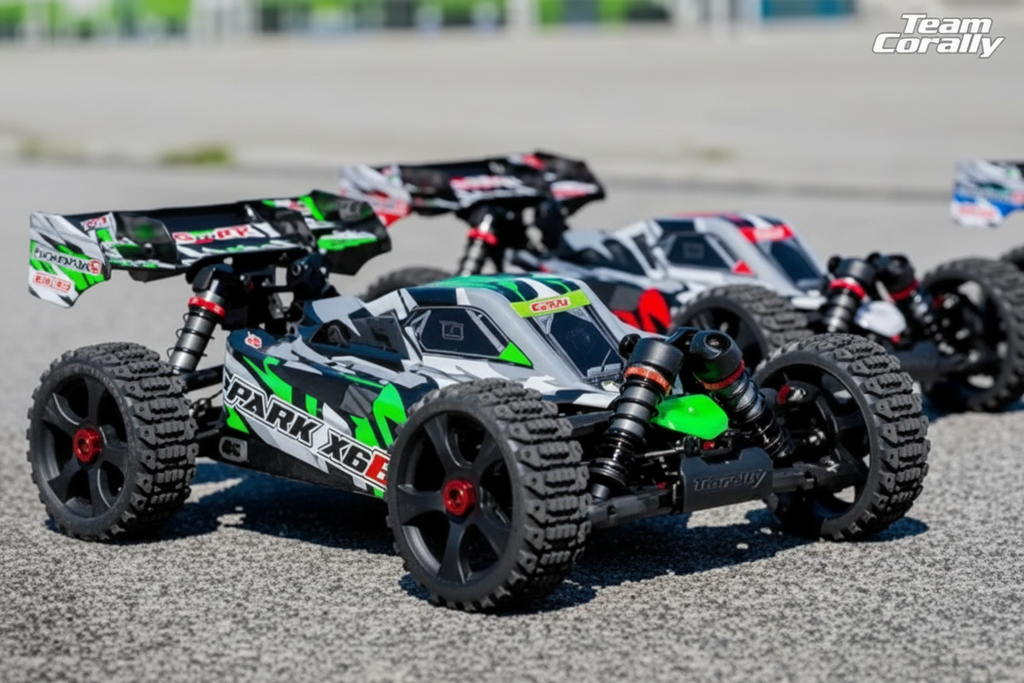

The First True 1:8 Bash Buggy
Experience a revolution with the first true 1:8 scale buggy designed specifically for bashing – the Team Corally Spark XB6!

Get ready to push boundaries, conquer challenges, and experience the thrill of ultimate durability and outstanding performance. Customer feedback drives Team Corally’s innovation, and this model is the result.

The new Spark XB6 sets itself apart from other 1:8 scale buggies by focusing on one thing - bashing. With top-tier materials and impeccable craftsmanship, this basher's dream machine is engineered to conquer the most challenging terrains and obstacles you can throw at it.

In the Box

Factory Assembled Chassis: 1/8 Scale Team Corally Spark XB-6 Buggy 4WD
Radio System: Team Corally CT2R 2.4GHz 2-Channel Transmitter
Documentation: Comprehensive instruction manual and user guide
Tool Set and Accessories

More Information

Your Path, Your Control:
Choose your adventure with the Spark available in two versions - a hassle-free Ready-to-Run package (described here) and a Rolling Chassis option that allows you to personalize your choice of electronics. Both versions come in three eye-catching color combinations, featuring a matte black base complemented by striking Red, Green, or Blue accents.

Unleash the power:
The included Team Corally Torox 185A 4-6S ESC features LiPo battery protection in addition to other safety and performance options, while the Team Corally Kuron 2050kV 4-Pole Brushless Motor delivers impressive speed and torque. Precise steering control is delivered by the HV-7225 HV Metal-Gear Steering Servo. The comfortable CT2R 2.4GHz radio delivers a rock-solid radio link and adjustable features for driving convenience.

Attention to details:
The Spark boasts an array of features, from aluminum servo arms to a one-piece composite steering link, and a 3mm 7075 aluminum double-deck steering Ackermann system, this buggy is built for precision.

It comes equipped with separate, sealer electronic boxes with a transponder mount, an XL adjustable battery holder compatible with common LiPo batteries, and a full set of aerospace-quality sealed ball bearings.

Bulletproof drivetrain:
The Spark's drivetrain features a hardened steel spur gear, motor pinion, and sealed metal differentials filled with silicone oil. The aluminum/steel central differential, along with quick and easy differential access, offers unparalleled convenience and performance. With its aluminum adjustable motor mount, 46T steel central gear, hardened steel outdrives, and front CVD joints, the Spark is built for durability. Its oil-filled threaded 16mm aluminum Big Bore shocks, shock spring perches locking system, and CNC aluminum shock towers deliver exceptional handling and stability.

Bash proof Suspension:

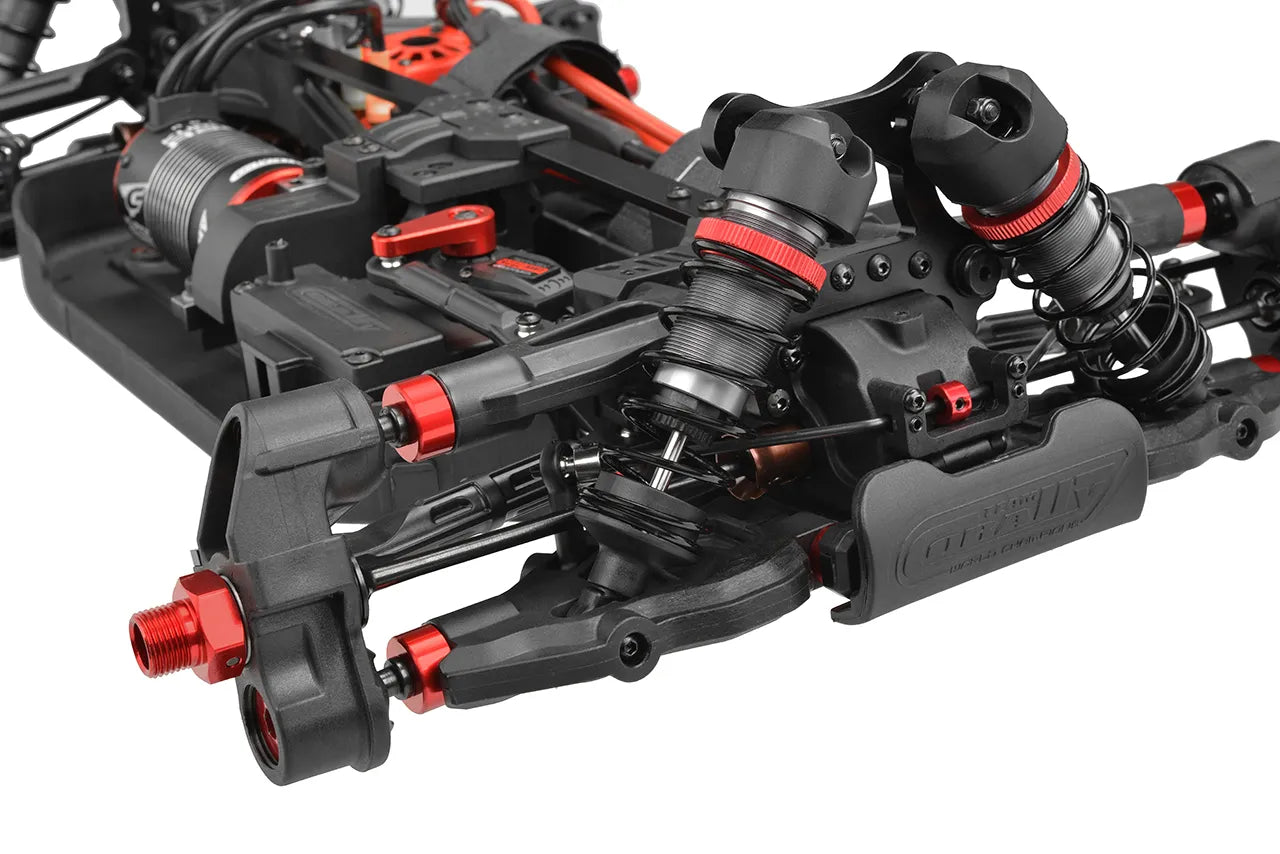

The independent pivot ball front suspension and independent double wishbone rear suspension guarantee precise control over rough terrain, while the heavy-duty one-piece composite suspension links and tie rods ensure strength and durability. With a reinforced chassis, high downforce wing, and a central chassis reinforcement system, the Spark is ready for the most challenging bashing sessions. Join the revolution with the Team Corally Spark XB6 - the ultimate 1:8 scale basher's dream machine. Unleash your inner thrill-seeker and conquer any terrain with unmatched performance, durability, and style. Get ready for the ride of a lifetime!

Ignite the Spark XB6, Conquer the terrain:
Team Corally’s Spark XB6 is the definition of 1/8 scale Bash Buggy excellence. We value our customers' input, and their feedback has played a vital role in shaping the Spark into one exceptional bash machine. Become a part of the family of passionate Team Corally Bashers! Get ready to push boundaries, conquer challenges, and experience the thrill of breathtaking performance.

Features

• Team Corally Torox 185 ESC 4-6S with LiPo protection
• Team Corally Kuron 2050kV 4-Pole Brushless Motor 4-6S
• CRHV-7225 HV Metal Gear, 25Kg Torque, Steering Servo
• Team Corally CT2R Ergonomic, Interference-free 2.4GHz Transmitter
• Aluminium servo arm
• One-Piece Composite Steering Link
• 3mm 7075 aluminum double-deck steering Ackermann system
• Separate splash-proof and dustproof electronic box with transponder mount
• XL Adjustable battery holder for all common LiPo batteries
• Full set of ball bearings, rubber sealed
• All transmission ball bearings are 8x16x5mm
• Hardened steel spur gear and motor pinion
• Three sealed metal differentials individually filled with silicone oil
• Aluminum/Steel central differential
• Quick + Easy diff access
• 2-piece aluminium motor holder with composite gear cover
• 46T Steel Central gear
• Complete Hard Coated S2 steel outdrives
• Extra Surface Hardened Steel front CVD joints
• Aluminium 17 mm drive hexes
• Oil-filled threaded 16 mm aluminium Big Bore shocks
• Shock spring perches locking system
• Nylon composite shock cap protectors
• CNC aluminium shock towers, 5mm Front and Rear

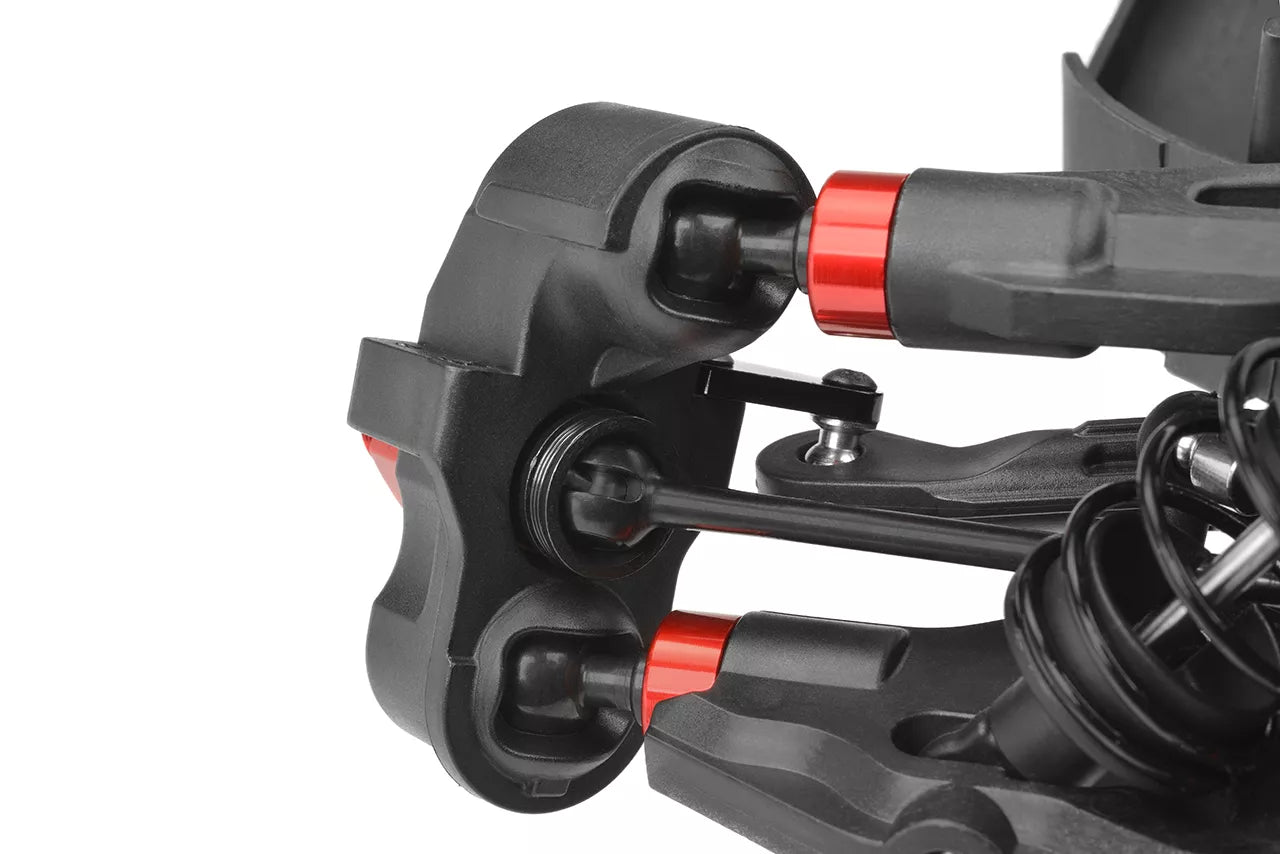

• Independent Pivot Ball front suspension
• Independent double wishbone rear suspension
• Optimized, custom developed composite parts
• Aluminium Pin and Pivot Ball Collars on Suspension Arms
• HD front steering blocks and rear hubs
• Thick 4mm Aluminium Suspension Pin Braces
• Composite Suspension Braces protectors
• Heavy-Duty one-piece composite suspension links and tie rods
• Team Corally RSP anti-roll bar system, front + rear
• 3mm Aluminium chassis plate
• Reinforced chassis side guards with integrated body protection
• Heavy Duty front Bumper
• New Central Chassis reinforcement system with 3mm Aluminium Plate
• Reinforced High Downforce Wing + Wing Holder with tower connecting brace
• Pre-glued high-speed XL Buggy Tires on black 6-spoke nylon rims
• Sturdy, elaborately printed polycarbonate body
• Composite body mount protectors
• Wide assortment of tuning parts available for individual customization

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.• Team Corally Torox 185 ESC 4-6S with LiPo protection
• Team Corally Kuron 2050kV 4-Pole Brushless Motor 4-6S
• CRHV-7225 HV Metal Gear, 25Kg Torque, Steering Servo
• Team Corally CT2R Ergonomic, Interference-free 2.4GHz Transmitter
• Aluminium servo arm
• One-Piece Composite Steering Link
• 3mm 7075 aluminum double-deck steering Ackermann system
• Separate splash-proof and dustproof electronic box with transponder mount
• XL Adjustable battery holder for all common LiPo batteries
• Full set of ball bearings, rubber sealed
• All transmission ball bearings are 8x16x5mm
• Hardened steel spur gear and motor pinion
• Three sealed metal differentials individually filled with silicone oil
• Aluminum/Steel central differential
• Quick + Easy diff access
• 2-piece aluminium motor holder with composite gear cover
• 46T Steel Central gear
• Complete Hard Coated S2 steel outdrives
• Extra Surface Hardened Steel front CVD joints
• Aluminium 17 mm drive hexes
• Oil-filled threaded 16 mm aluminium Big Bore shocks
• Shock spring perches locking system
• Nylon composite shock cap protectors
• CNC aluminium shock towers, 5mm Front and Rear
• Independent Pivot Ball front suspension
• Independent double wishbone rear suspension
• Optimized, custom developed composite parts
• Aluminium Pin and Pivot Ball Collars on Suspension Arms
• HD front steering blocks and rear hubs
• Thick 4mm Aluminium Suspension Pin Braces
• Composite Suspension Braces protectors
• Heavy-Duty one-piece composite suspension links and tie rods
• Team Corally RSP anti-roll bar system, front + rear
• 3mm Aluminium chassis plate
• Reinforced chassis side guards with integrated body protection
• Heavy Duty front Bumper
• New Central Chassis reinforcement system with 3mm Aluminium Plate
• Reinforced High Downforce Wing + Wing Holder with tower connecting brace
• Pre-glued high-speed XL Buggy Tires on black 6-spoke nylon rims
• Sturdy, elaborately printed polycarbonate body
• Composite body mount protectors
• Wide assortment of tuning parts available for individual customization

Specifications

Car Type: Buggy
Age Requirement: Age 14+
Skill Level: Intermediate
Completion Level: RTR - Ready To Run
Assembly Time: No Assembly Required
Drive Train: 4WD - Shaft Driven
Power System: 3S, 4S, 6S
Motor Type: Brushless
Recommended Environment: All Terrain
Top Speed (km/h): 110,00
Car - Dimensions
Model Scale: 1/8 Scale
Length (mm): 495,00
Height (mm): 175,00
Wheelbase (mm): 327,00
Track Front (mm): 308,00
Track Rear (mm): 308,00
Ground Clearance (mm): 58,00
Weight (g) - No Battery: 3650,00
Battery Compartment LxWxH (mm): 161x51x49
Shock Dia. ø (mm): 19,00
Front Shock Length (mm): 107,00
Rear Shock Length (mm): 129,00
Rim Dia. ø (mm): 90,00
Rim Width (mm): 42,00
Tire Dia. ø (mm): 116,00
Tire Width (mm): 43,00
Car - Electronics
Motor: Kuron 825 - 2050KV - 2-6S (Included)
ower Battery: Not Included (See Accessories)
Radio: TC - CT-2R 2.4GHz (Included)
Servo: CR-7225 - 25Kg Torque (Included)
Speed Control: TC - Torox 185 ESC 3-6S (Included)
Charger: Not Included (See accessories)
Car - Tech Details
Wheel Adapter: 17 mm Hex Adapter
Bearings: Full Ball Bearings - Rubber Shielded
Differentials: 3x Gear Differentials
Front Suspension Type: Independent - Pillow Ball Type
Rear Suspension Type: Independent - Wishbones
Gear Pitch: MOD 1.0
Spur Gear (T): 46
Motor Pinion (T): 13
Internal Drive Ratio: 3,31
Overall Drive Ratio: 11,71
Shock Type: Oil Filled "Big Bore" Aluminium Shocks - Coil Over Springs
Car - Materials
Bevel Gear - Pinion: Precision CNC Machined - Hardened Steel
Chassis: 3mm - Aluminium 6061-T6 - Color Anodised
Chassis Braces: Molded Composite + Aluminium Bar
Differential Center: Hybrid Case - 6065-T6 Aluminium + Steel
Differential FR - RE: Molded Composite Case
Outdrives: Racing S2 Springsteel - Hardened
Lower Arm Holders: 4mm 6061-T6 Aluminium + Composite
Shock Tower - Front: 5mm - Aluminium 6061-T6 - Color Anodised
Shock Tower - Rear: 5mm - Aluminium 6061-T6 - Color Anodised
Motor pinion: Precision CNC Machined - Hardened Steel
Spur Gear: Precision CNC Machined - Hardened Steel
Bodyshell: Polycarbonate - Painted, Decalled and Trimmed


Needed to Complete

4-6S block or 2x2S and 2x3S LiPo batteries with XT90 connector, appropriate charger, and AA batteries for the transmitter.
