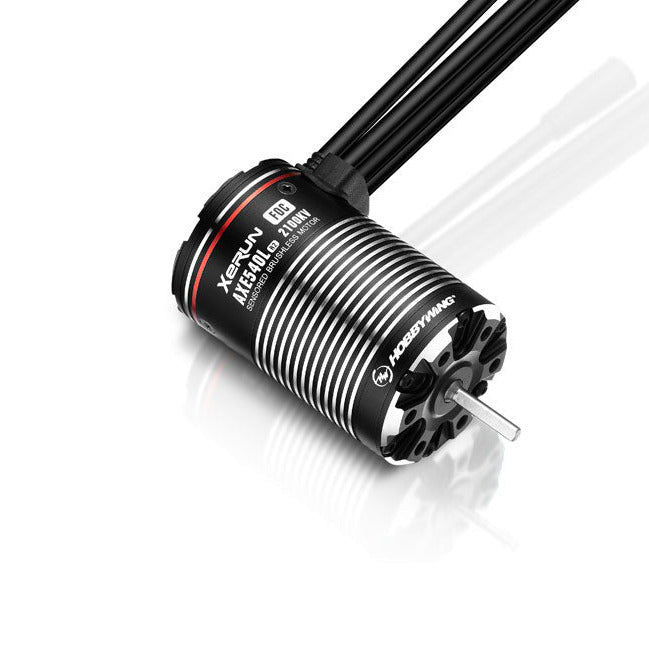

Equip your 1/10 scale rock crawler or technical trail truck with ultimate precision using the Hobbywing Xerun AXE R2 540L 2100KV FOC Brushless Motor. Built specifically to pair with the AXE R2 ESC, this motor utilizes advanced Field-Oriented Control (FOC) technology and a built-in high-precision magnetic encoder to deliver absolute zero cogging, ultra-quiet operation, and buttery-smooth low-speed crawling linearity.
In the Box

(1) Hobbywing Xerun AXE 540L R2 2100KV Sensored Motor

(1) Waterproof Sensor Harness Connection Cable

(1) Product Manual & Decal Sheet
More Information

The 540L extended-can design provides extra torque output while featuring a rugged IP67 fully sealed waterproof architecture. Complete with a secure plug-and-screw waterproof sensor harness, this motor is engineered to conquer mud, water crossings, and extreme rock obstacles without missing a beat.

Note: The 540L 2100KV version provides an incredible balance of wheel speed and torque for heavier 1/10 crawlers running on 2S or 3S LiPo. Remember that this motor requires an AXE-series FOC ESC to operate!
Features

FOC (Field-Oriented Control) Optimized: Engineered explicitly for FOC systems, providing unmatched low-speed throttle finesse, absolute silence, and closed-loop RPM control under heavy loads. High-Precision Magnetic Encoder: Replaces traditional Hall sensors with an internal chip-type magnetic encoder for pinpoint rotor positioning and flawless data transmission to the ESC. Patented Staggered-Pole Rotor: 4-pole, 12-magnet layout featuring Hobbywing’s staggered-pole design to completely eliminate torque ripple and cogging effects at a crawl. IP67 All-Weather Sealed Design: Fully dustproof and waterproof construction lets you hit wet rocks, streams, and muddy trails with complete confidence. Secure Plug-and-Screw Sensor Port: Features a robust locking screw layout with an internal silicone O-ring seal to protect the sensor connection from moisture and dirt.

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.FOC (Field-Oriented Control) Optimized: Engineered explicitly for FOC systems, providing unmatched low-speed throttle finesse, absolute silence, and closed-loop RPM control under heavy loads. High-Precision Magnetic Encoder: Replaces traditional Hall sensors with an internal chip-type magnetic encoder for pinpoint rotor positioning and flawless data transmission to the ESC. Patented Staggered-Pole Rotor: 4-pole, 12-magnet layout featuring Hobbywing’s staggered-pole design to completely eliminate torque ripple and cogging effects at a crawl. IP67 All-Weather Sealed Design: Fully dustproof and waterproof construction lets you hit wet rocks, streams, and muddy trails with complete confidence. Secure Plug-and-Screw Sensor Port: Features a robust locking screw layout with an internal silicone O-ring seal to protect the sensor connection from moisture and dirt.

Specifications

Application - 1/10 Scale Rock Crawlers and Technical Trail Trucks
Motor Type - FOC Brushless Sensored (540L Size)
KV Rating - 2100KV
LiPo Compatibility - 2-3S LiPo
Pole Count - 4-Pole
No-Load Current - 2.7A
Outer Diameter (O.D.) - 36.0 mm
Length - 57.8 mm
Shaft Diameter - 3.175 mm
Weight - 233g
Waterproof Rating - IP67 Sealed

Note: The 540L 2100KV version provides an incredible balance of wheel speed and torque for heavier 1/10 crawlers running on 2S or 3S LiPo. Remember that this motor requires an AXE-series FOC ESC to operate!
Needed to Complete

AXE-series FOC ESC
