COMING SOON – GET READY!

Get ready for relentless, high-speed bashing with the Omni-Terminator Metal Edition. Built around a rugged, heavy-duty alloy chassis and powered by an efficient brushless power system, this 1:10 mini monster truck strikes the ultimate balance between brute strength, high performance, and extreme value.

Equipped with an industry-first central differential, full metal drivetrain components, and long-travel oil-filled suspension, the Metal Edition is built to take hard impacts, tackle rough terrain, and deliver predictable handling straight out of the box.

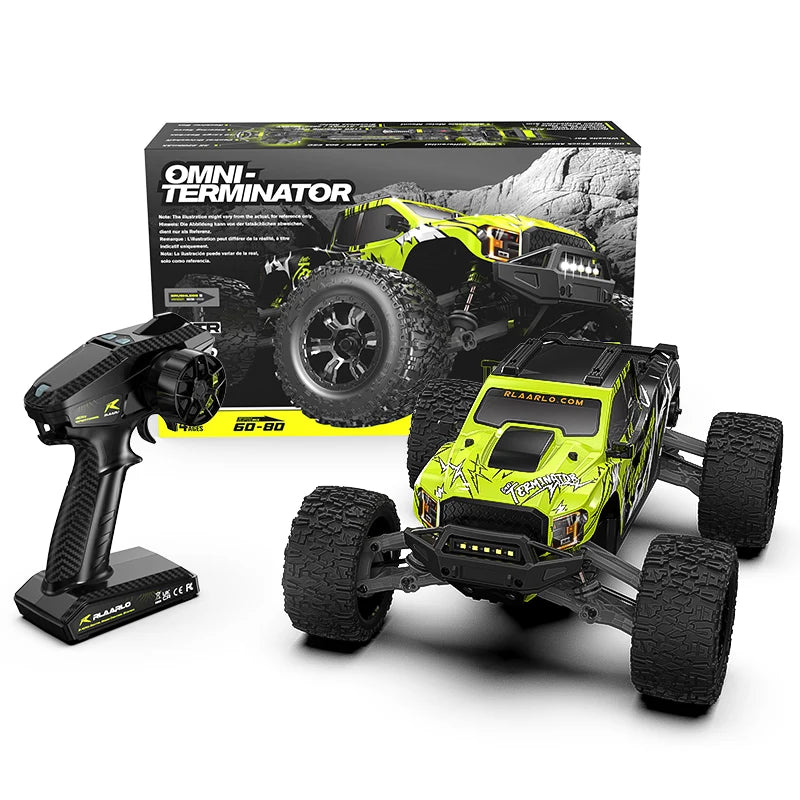

In the Box

1) Omni-Terminator Standard Metal MINI 1:10 Scale RTR Brushless Monster Truck (RZ001G-A)

(1) 2.4GHz 4-Channel Digital Transmitter

(1) 3S 11.1V 2200mAh LiPo Battery

(1) USB LiPo Balance Charging Cable

(1) Pre-Painted Body Shell with Anti-Lost Body Clips

(1) Hex Wrench / Wheel Cross Wrench Tool Set

(1) Instruction Manual

More Information

The Center Diff Advantage: Most mini and compact monster trucks rely on a slipper clutch or direct shaft drive, which can lead to unpredictable handling on rough ground. The central differential structure on the RZ001G-A continuously balances power between the front and rear axles. This reduces wheelies when you want maximum steering control and keeps all four tires planted when accelerating out of loose corners.

Whether you're looking for a durable backyard basher or a high-precision mini speed machine, the Omni-Terminator delivers standard 1:10 scale durability in a agile, highly tuneable footprint.

Specifications

Dimensions (L × W × H) 410 × 288 × 172 mm
Wheelbase 251 mm
Speed 60–80 km/h
Supported Voltage 2S – 3S LiPo
Motor 2852 - 3100KV Brushless Motor
ESC 45A Brushless ESC (Supports 2–3S) XT60
Battery 2200mAh 3S LiPo Battery Included
Servo 11 kg High-Torque, 7075 Aluminum Gear
Transmitter 4-Channel Transmitter (150-meter range)
Pinion Gear 0.53M / 48P 16–19T Chrome Steel Pinion
Spur Gear 0.53M / 48P 65T Quality Alloy Metal Spur Gear
Input Gear 1M - 11T Quality Alloy Metal Input Gear
Differential Gear 1M - 34T Quality Alloy Metal Differential Gear

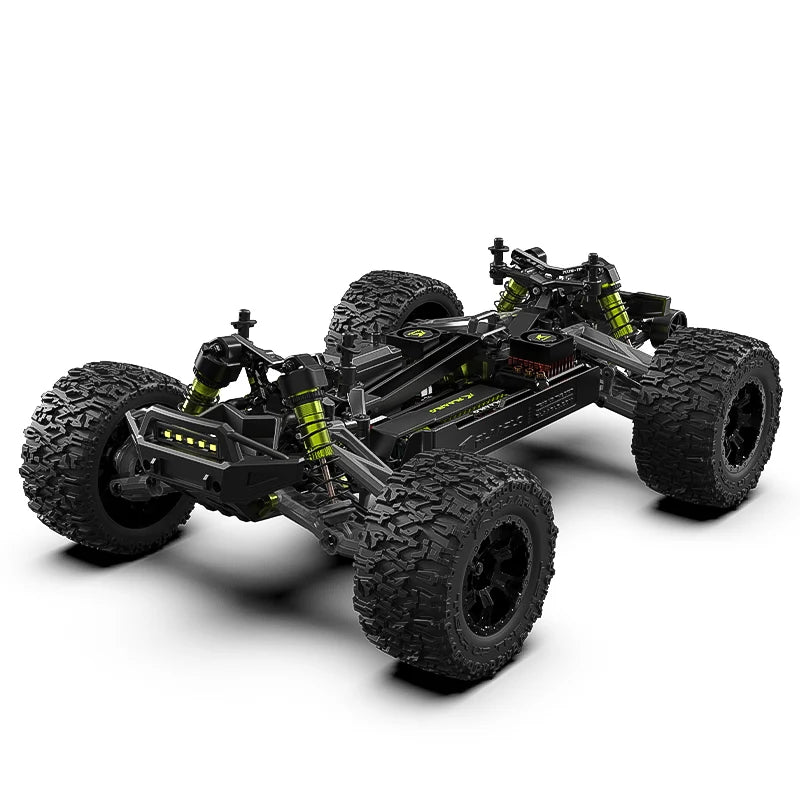

Main Driveshaft Steel Split Center Differential Transmission
Transmission Method Central Differential Transmission
CVD Heavy-Duty Steel CVDs
Tire Size 104 mm
Shock Absorber Oil-Filled Metallic Shock Absorbers
Suspension Arms Double-Triangle Nylon Suspension Arms
Body Shell 1.2 mm PVC / PC
Battery Compartment 2-in-1 Design (Small: 110×36×30 mm / Big: 140×30×45 mm)
Chassis 2.5 mm Aluminum
Shock Towers 4 mm 7075-T6 Aluminum
Suspension Arm Mount 4.5 mm Aluminum
Upper Deck Aluminum
Motor Mount Aluminum (Supports Dia. 28mm Series Motors, Adjustable)
Steering Link Aluminum

Needed to Complete

Transmitter Batteries: 4 × AA Batteries for the 2.4GHz Controller
