Rlaarlo 1/7 JK07Pro Brushless RTR

Gray

Rlaarlo 1/7 JK07Pro Brushless RTR

COMING SOON – GET READY!

Experience ultimate scale realism and heavy-duty off-road engineering with the massive Rlaarlo 1/7 Scale JK07 Pro Crawler. Replicating the rugged aesthetics and mechanical depth of a true full-size overland vehicle, this flagship rig dominates the trails. Featuring a highly complex, multi-servo driven mechanical drivetrain and an authentic operational body design, the JK07 Pro bridges the gap between high-fidelity modeling and elite hobby-grade performance. JK07 Pro restores the appearance of the real car, equipped with a full vehicle linkage lighting system, simulation of side tents, gantries, luggage racks and other designs the ultimate simulation of details, to take you to the adventure of scale crawling.

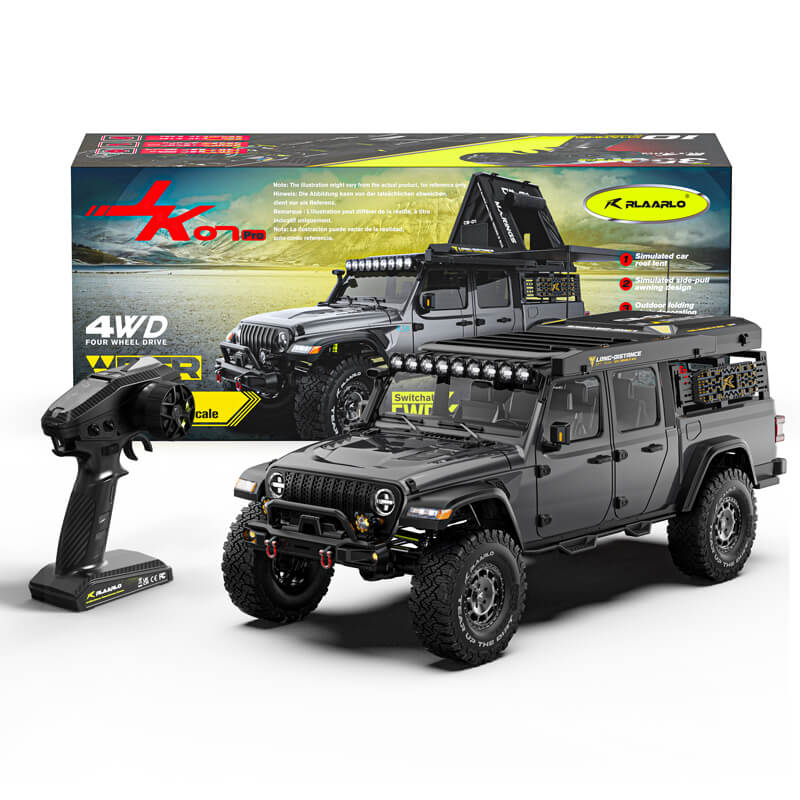

(1) Rlaarlo 1/7 Scale JK07 Pro Tactical Crawler (Ready-To-Run)

(1) 2.4GHz 10-Channel Professional Radio Transmitter

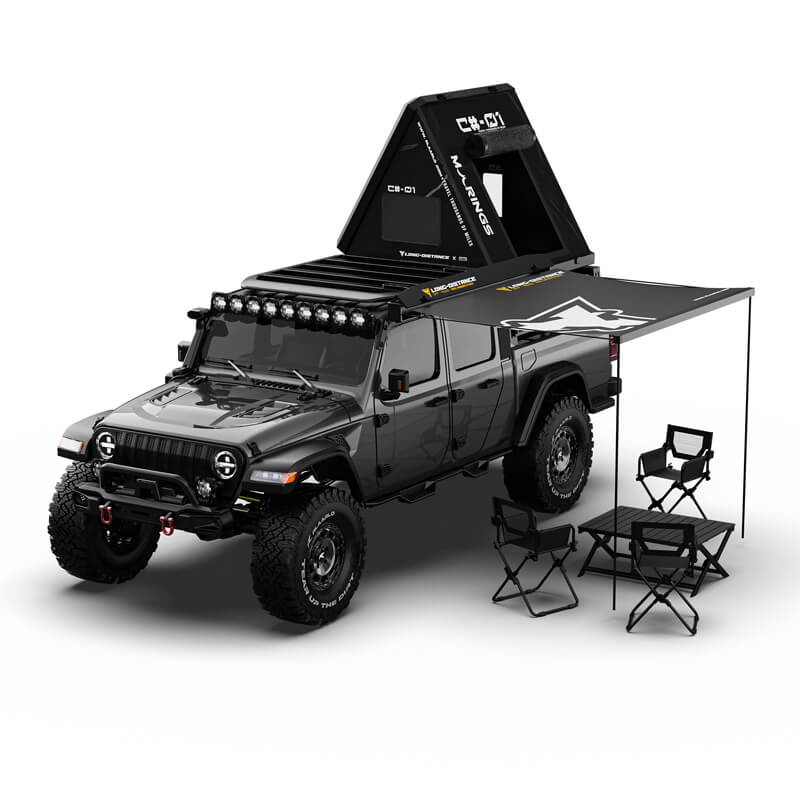

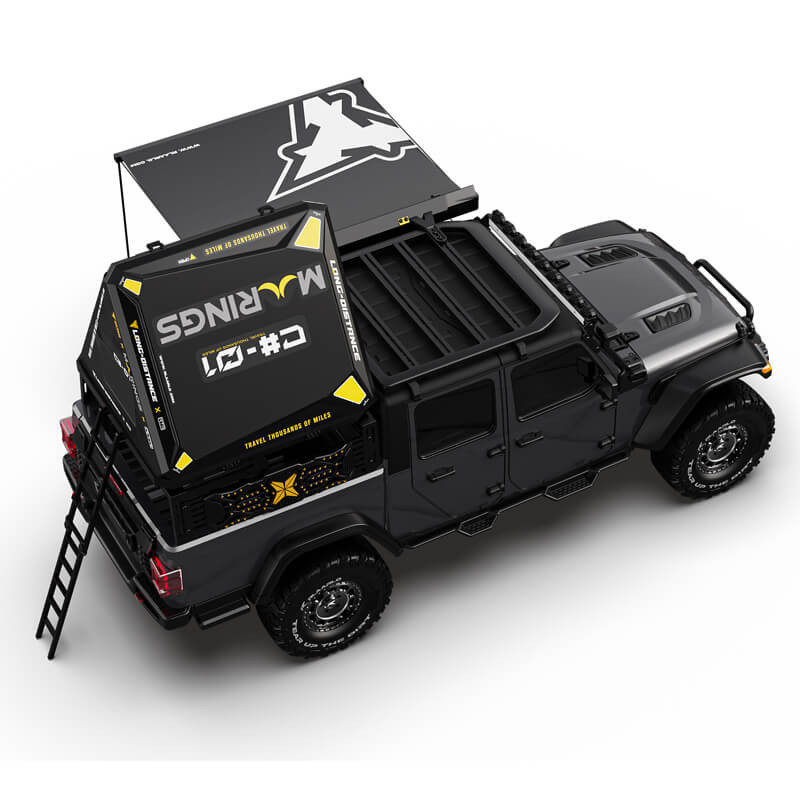

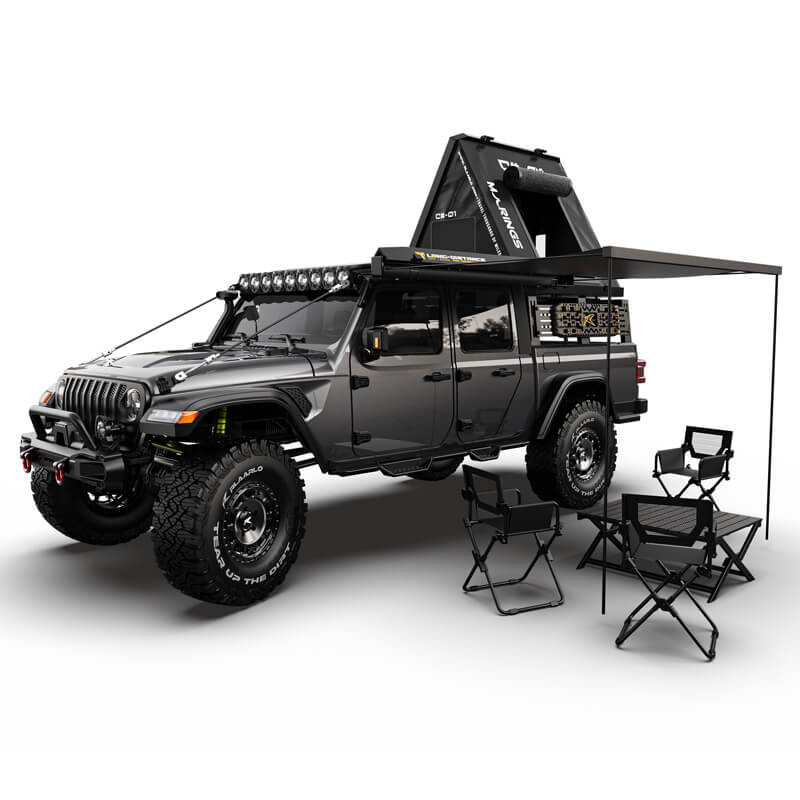

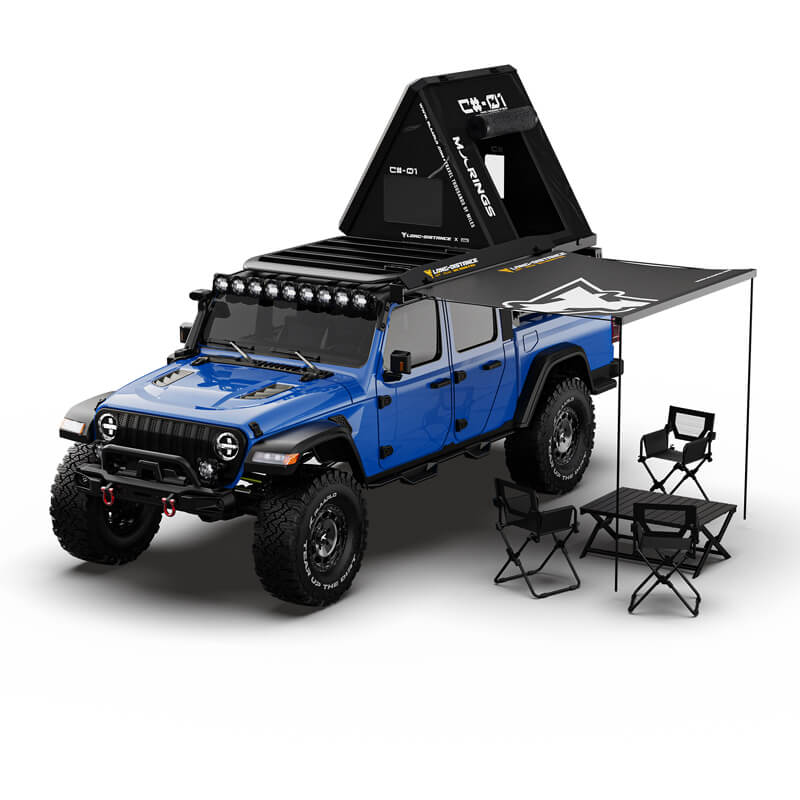

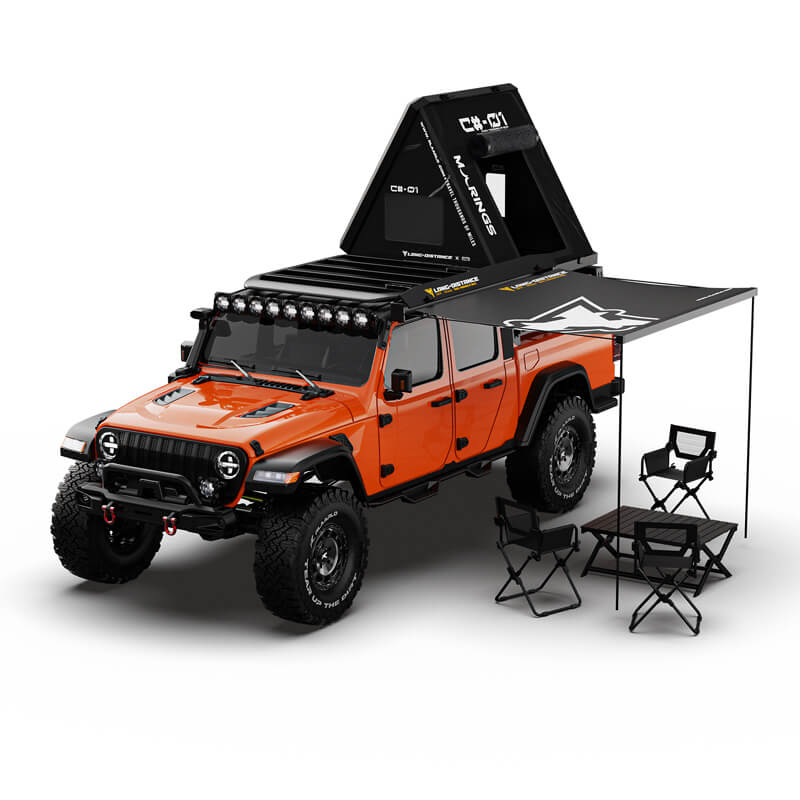

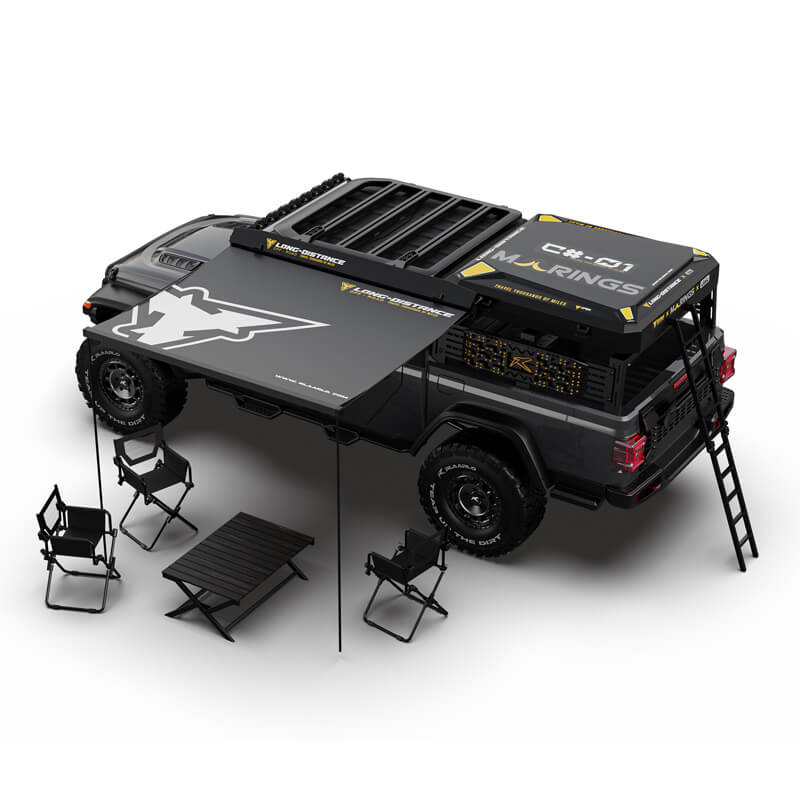

(1) Factory-molded Scale Accessories Set (Awning, Gantry, Seating, and Luggage Racks)

(1) Pre-installed Waterproof 45KG High-Torque Servo

(1) Pre-installed Multi-Servo Sub-linkages & 140A High-Power ESC System

(1) Comprehensive Instruction & User Manual

Equipped with a 4282 high-torque 2600KV magnetic encoding FOC sensored motor, featuring a high-speed digital sensor that requires no calibration, the motor is plug-and-play. The sensor supports hot-swapping with strong anti-interference and high signal quality.

The FOC ESC supports 2-4S batteries with a continuous current of 140A, utilizing vector control technology. Compared to square wave ESCs, it saves 5%-20% energy, providing longer run times for climbing adventures. The acceleration and deceleration performance of the FOC ESC is over twice as fast as square wave models.

The high-torque motor meets the needs of most large-scale crawlers on the market. Its low-speed linear torque compensation allows the vehicle to easily overcome obstacles while maintaining perfect balance. The vehicle excels not only in climbing scenarios but also in sand running and drift, offering users an ultimate control experience.

Scale: Massive 1/7 Scale Overland Crawler

Dimensions: 805mm × 325mm × 342mm (Length × Width × Height)

Wheelbase: 498mm

Curb Weight: 8KG (approx. 17.6 lbs)

Ground Clearance: Extreme 90mm portal axle clearance

Approach / Departure Angle: 56° / 31°

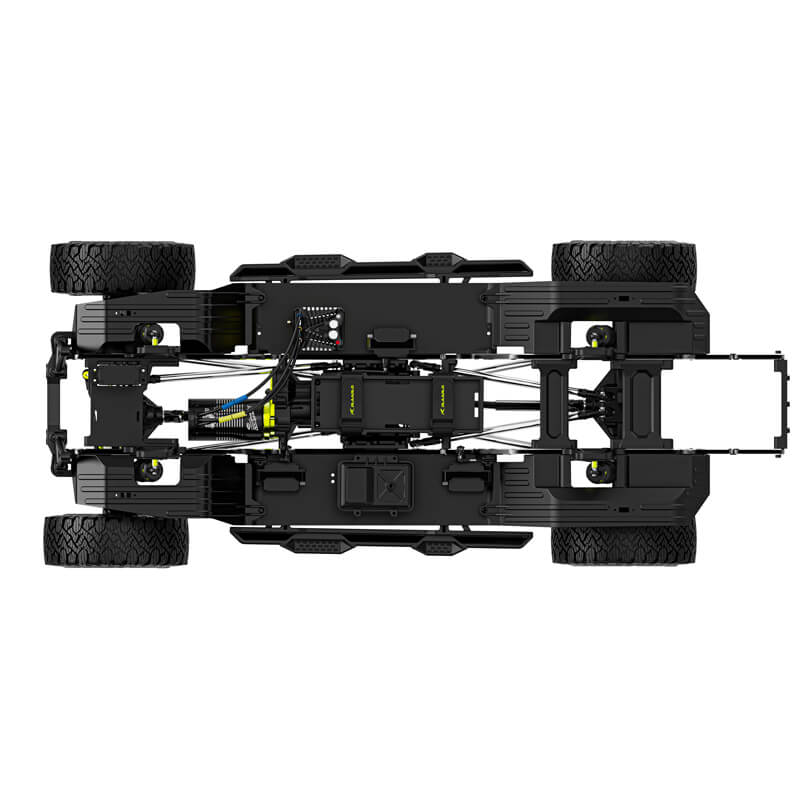

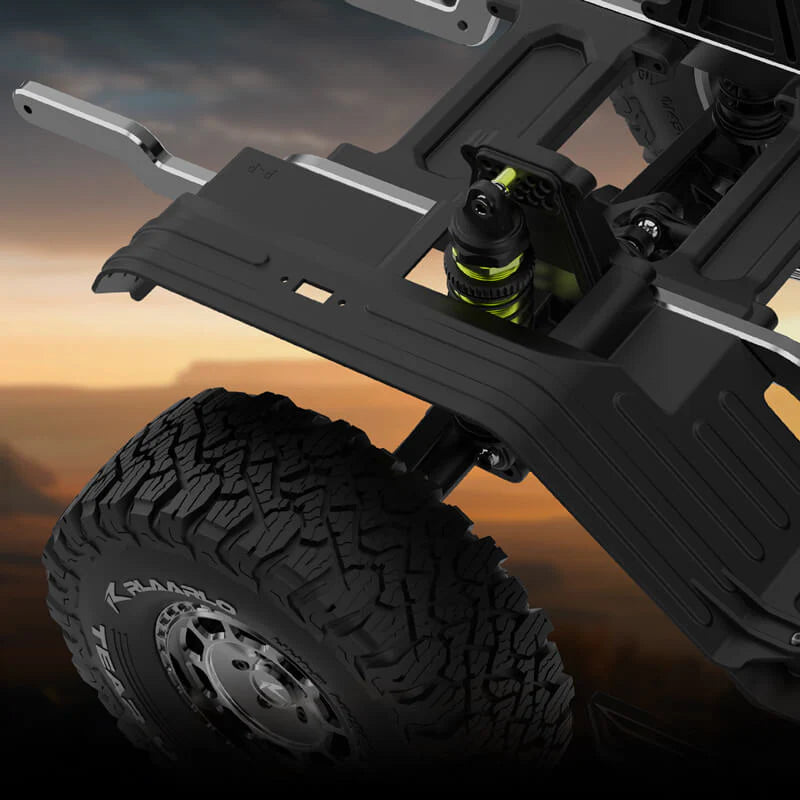

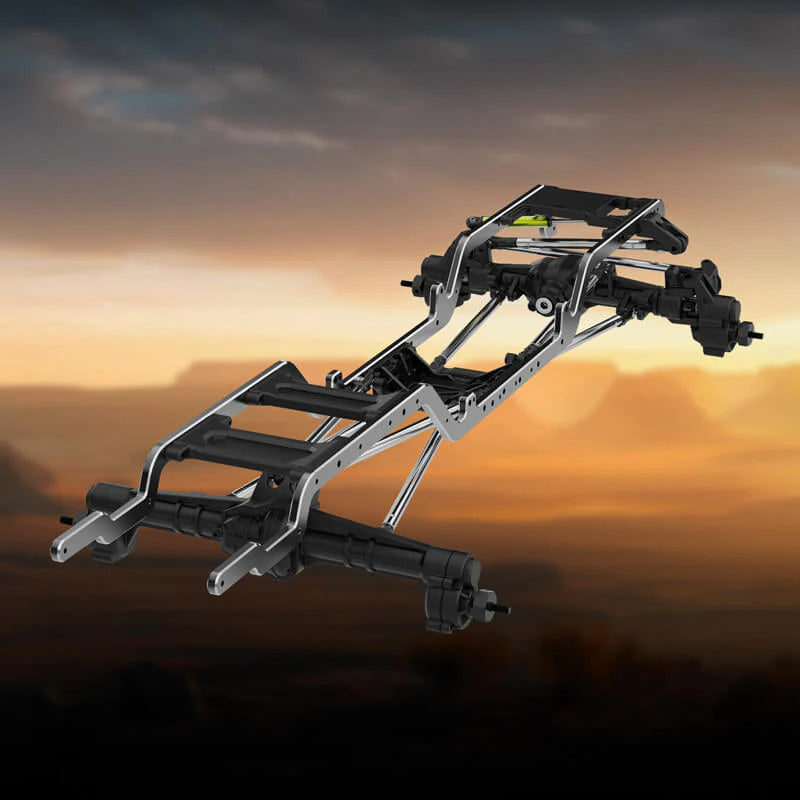

Chassis Beam: 6mm thick high-strength CNC aluminum beam

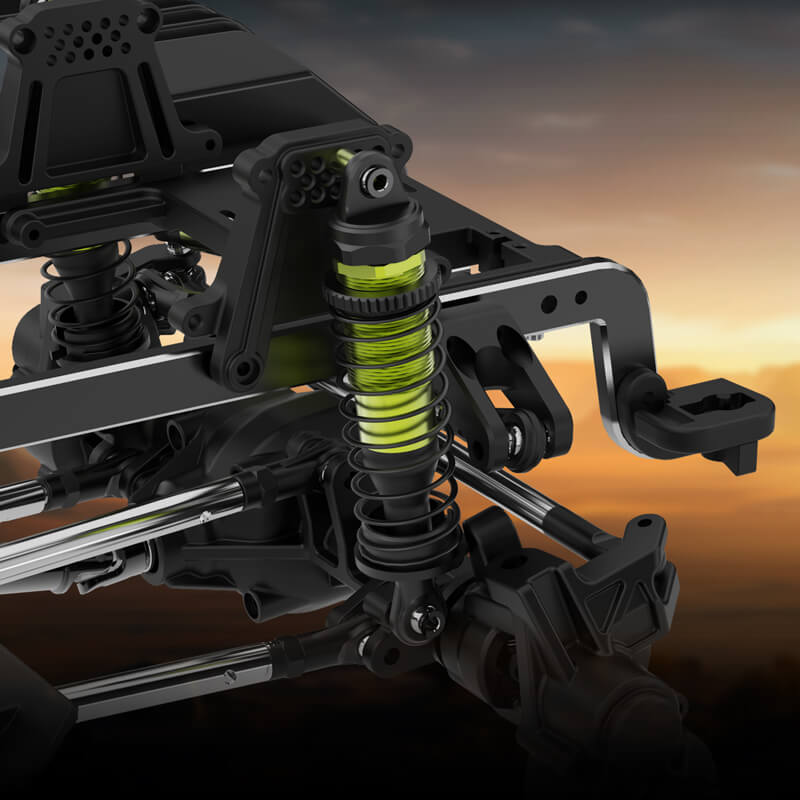

Suspension Links: Heavy-duty 8mm stainless steel pull rods

Power System:

Motor: Brushless 4282-2600KV high-performance motor

ESC: Brushless 140A Smart ESC with smartphone app parameter tuning support

Top Speed: High-efficiency 14–26 KM/H performance range

Drivetrain & Transmission:

Drive Modes: Transmitter-selectable Four-Wheel Drive (4WD), Front-Wheel Drive (FWD), and Rear-Wheel Drive (RWD)

Transmission: Switchable High and Low 2-Speed Gearbox

Differential Locks: Independent front and rear axle remote-locking differentials

Internal Diff Gears: Heavy-duty 36T/11T Chrome Steel Spiral Teeth

Electronics & Servos:

Main Steering Servo: 45KG High-Torque Brushless Servo (Waterproof)

Shift Servo: 25g High-Speed Servo

Micro Lock/Wiper Servos: 8g Micro Servos (×3)

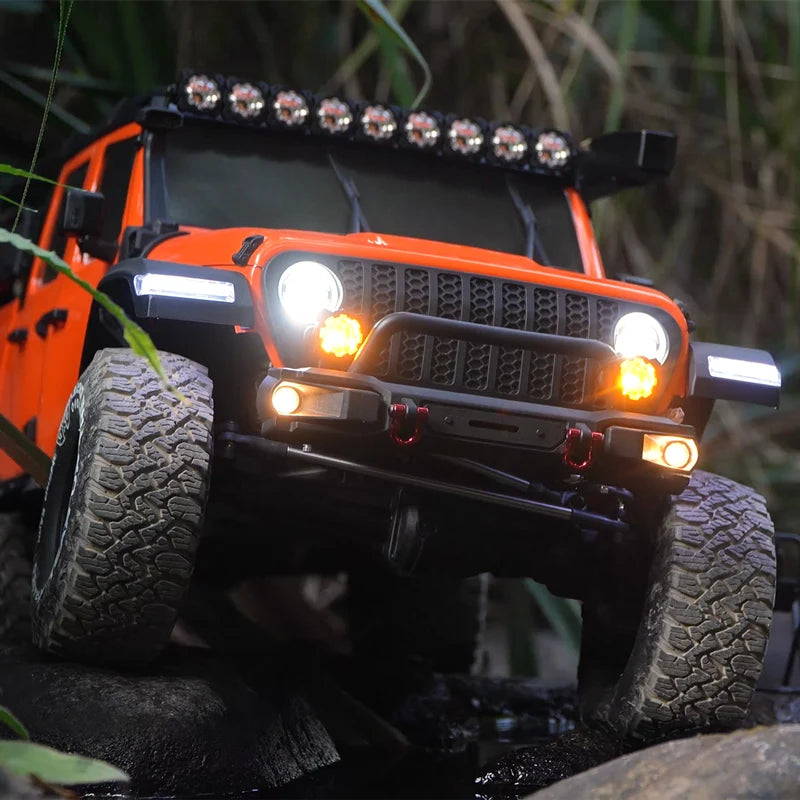

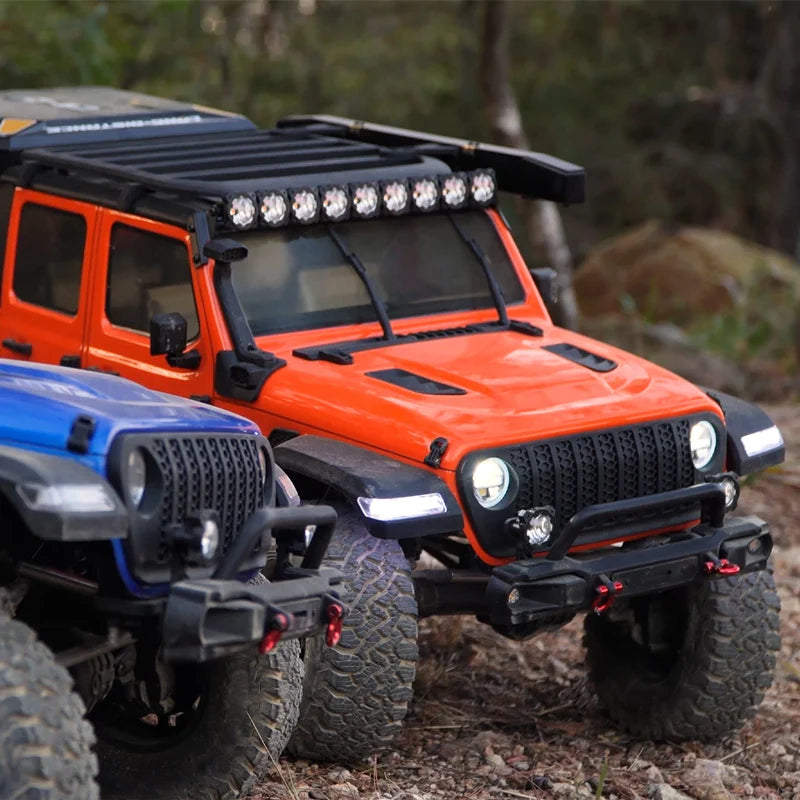

Lighting: Integrated full vehicle linkage LED lighting system

Radio System: 2.4GHz 10-Channel long-range transmitter (Up to 350-meter range)

Battery Requirements:

Voltage Compatibility: 2S to 4S LiPo compatible XT60 Plug

Battery Tray Size: Accommodates packs up to 164mm × 49mm

Wheels & Tires:

Tire Size: 145mm × 54mm all-terrain tires

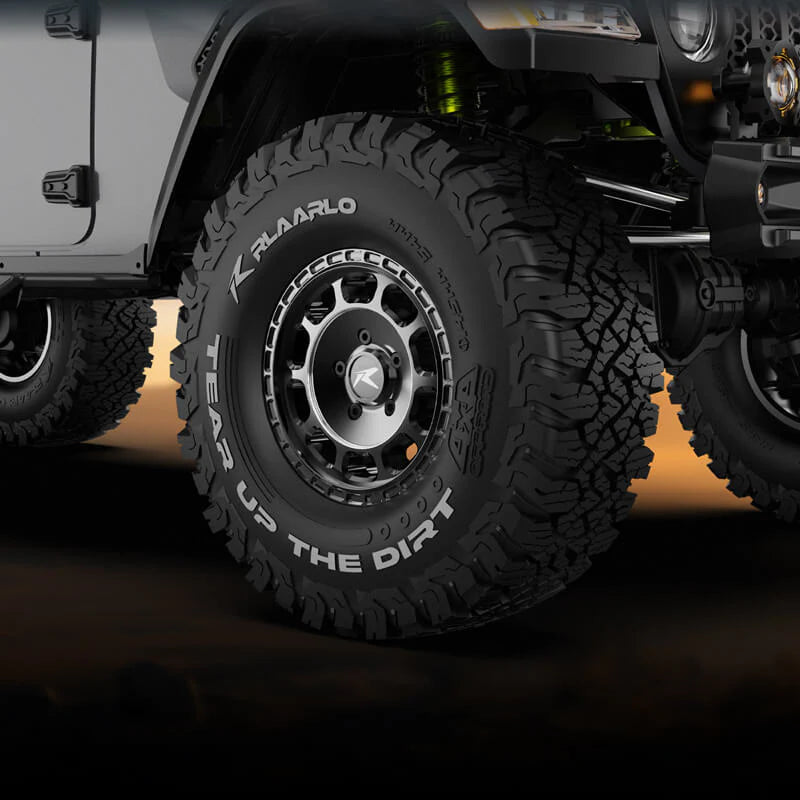

Wheel Hub: 2.6-inch scale rims with nylon inner cores and high-strength metal outer beadlock rings (17mm Aluminum Hex connectors)

2S–4S LiPo battery with XT60 plug (Max dimensions: 164mm × 49mm). Charger: Compatible LiPo balance charger. Transmitter Power: 4 × AA batteries for the 10-channel remote control.

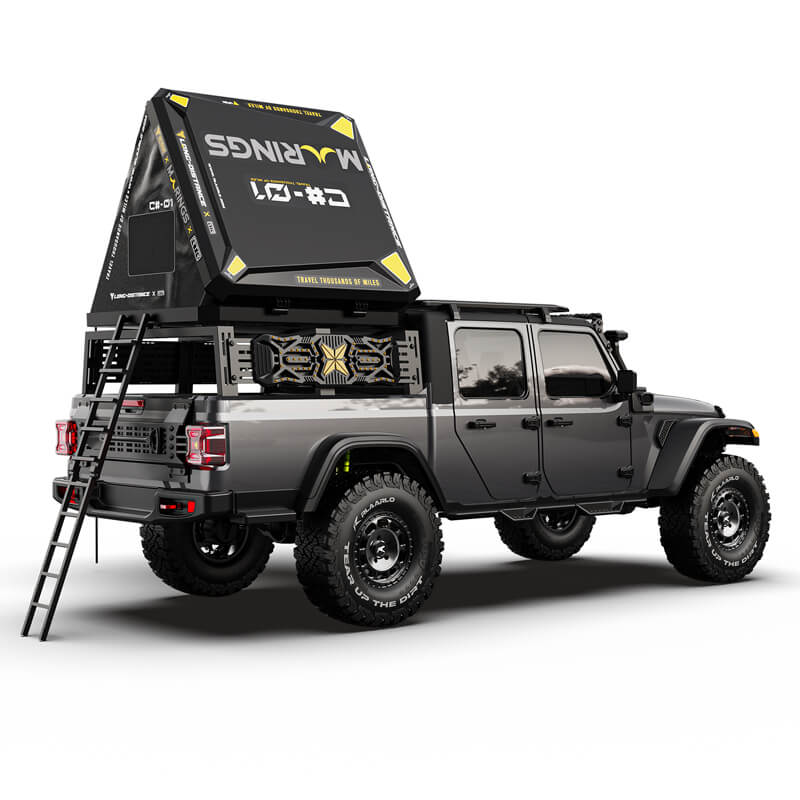

Premium Scale Realism: Meticulously detailed 1.5mm thick impact-resistant Polycarbonate body outfitted with scale accessories like a factory-installed luggage rack, gantry, and realistic side tents. On-the-Fly Tri-Drive Transfer Case: Switch dynamically straight from your transmitter between Full-Time 4WD, Front-Wheel Pulling Drive (FWD) for pulling over high ledges, and Rear-Wheel Drive (RWD) to lock down descents. Remote-Locking Portal Axles: High ground clearance portal axles elevate the central diff pumpkins to a massive 90mm of ground clearance. Lock or unlock the front and rear differentials independently from the radio. Interactive Cockpit & Scale Action: Features a fully synchronized interior steering wheel that turns with your steering inputs, plus functional motorized 3-speed windshield wipers. Full Vehicle Linkage Light System: A complete multi-mode LED system controlling low/high beams, daytime running lights, turn signals, top light bars, grille lights, hazard flashers, and brake/reverse indicators. Heavy-Duty Framework: Structural flex and torque twist are eliminated via a 6mm thick CNC high-strength aluminum alloy chassis beam and beefy 8mm stainless steel suspension link rods.
