JD 1/14 DXR2 Hydraulic Dozer- RTR
N$40,036.38
Sale price
N$40,036.38
Regular price
🚨 PRE-ORDER
This product is available for pre-order. To secure your unit, please contact us directly and we'll guide you through the process.
📦 Estimated Lead Time: 4 to 6 weeks from order confirmation (If unit is available at Supplier)
⚡ Limited units available — don't miss out.
📧 Email us:
- benr@gehobbies.com
- tjr@gehobbies.com
💬 WhatsApp: +264 81 372 8129
In the unlikely event that your order cannot be fulfilled, you will receive a full refund — no questions asked.

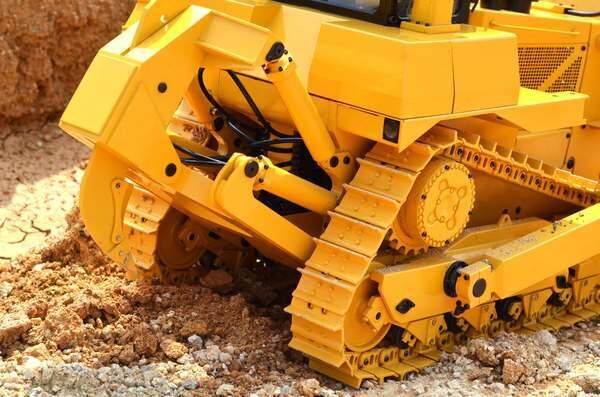

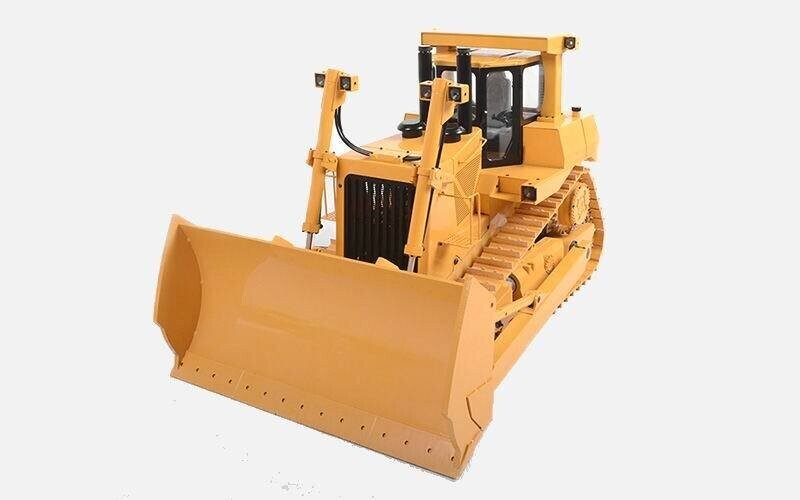

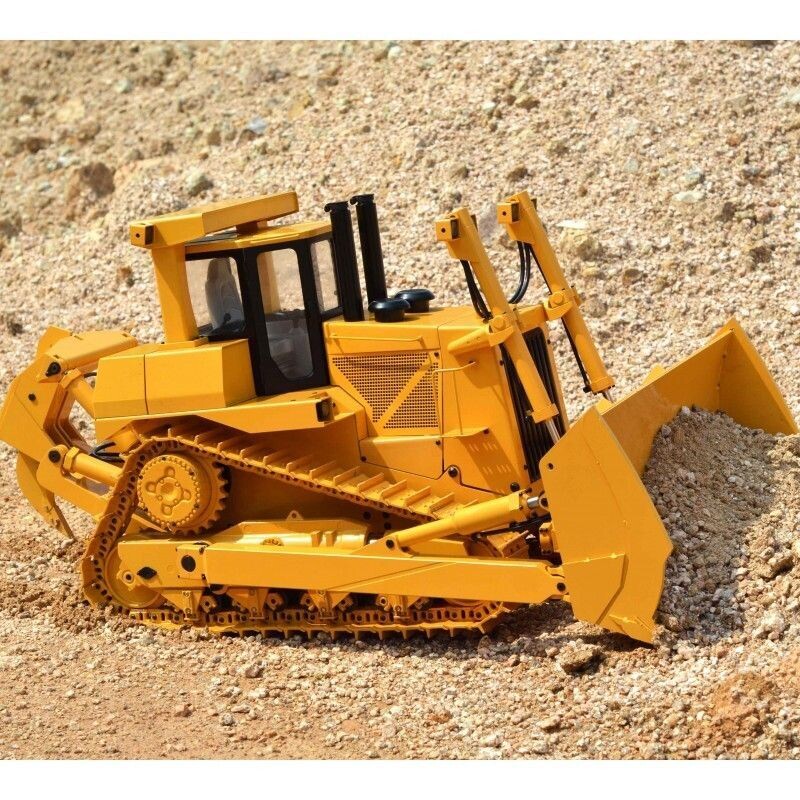

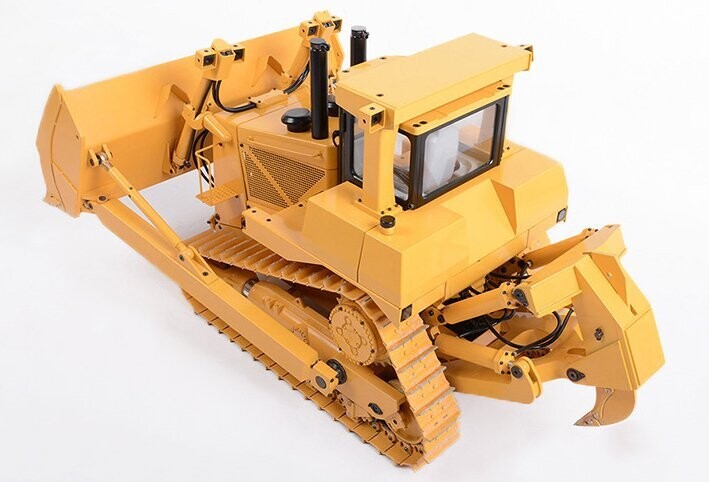

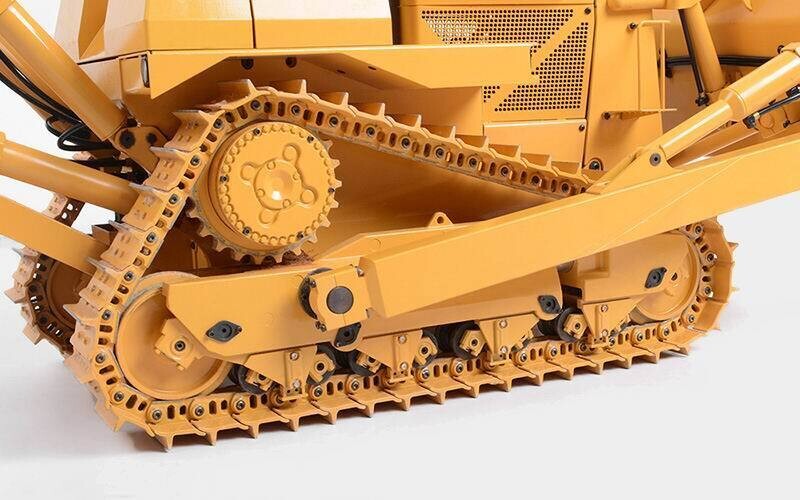

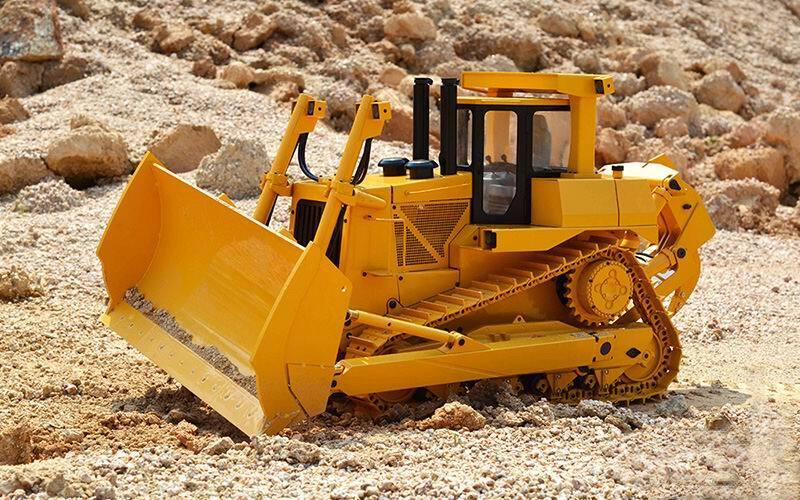

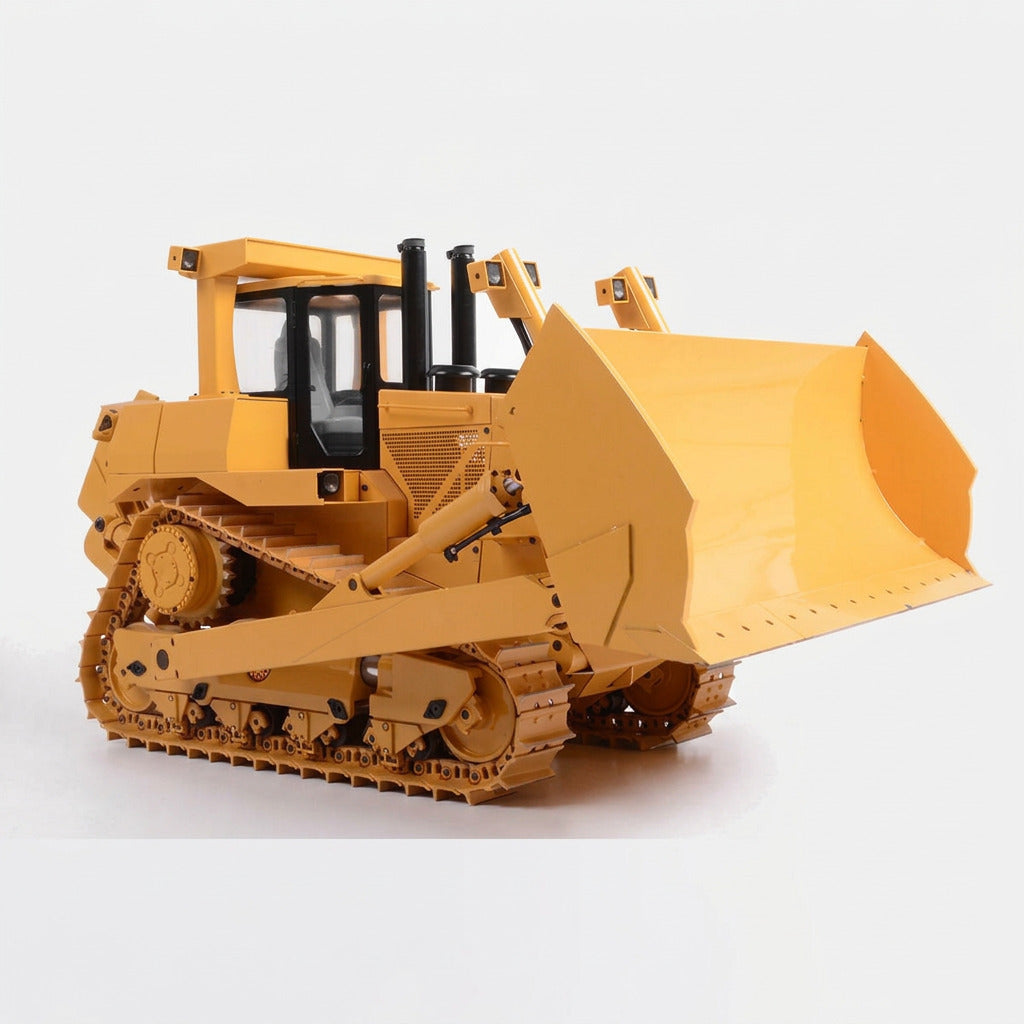

Rule the dirt and push massive mounds of material with the JD 1/14 DXR2 Hydraulic Earth Dozer (RTR). Modeled after heavy-duty industrial track-type bulldozers, this 26 kg (57 lb) brute force machine is constructed almost entirely from precision zinc alloy, aluminum casting, and welded steel components. Arriving fully assembled and factory painted, the DXR2 features a high-pressure brushless hydraulic system, a 4-way hydraulic control valve, and an articulated bogie-style track roller system designed to maintain ground contact across uneven terrain. With up to 76 kg (167 lbs) of downward blade force and a functional multi-shank rear ripper, this model is built for continuous earth-moving action.

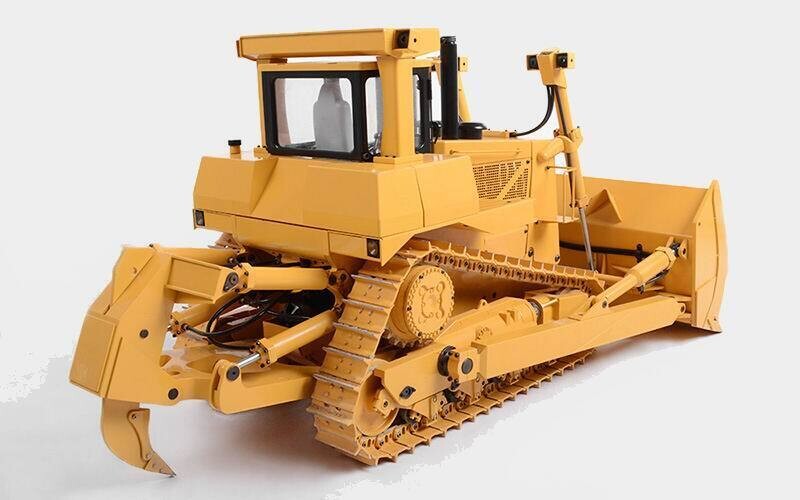

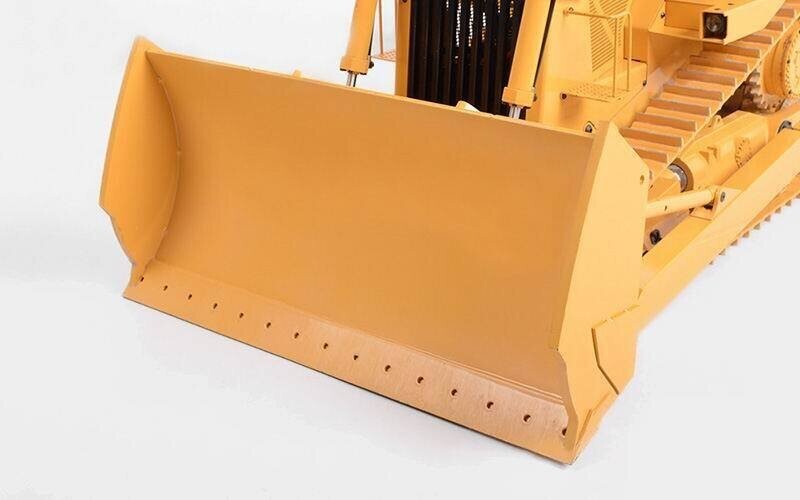

Massive All-Metal Construction: Precision CNC-machined alloy chassis, heavy-duty steel dozer blade, and durable full-metal crawler tracks built for heavy pushing power.High-Power Hydraulics: Powered by a high-efficiency chrome steel brushless hydraulic pump operating at 25 Bar (362.5 psi) with an adjustable pressure system.Extreme Blade Forces: Heavy-duty hydraulic cylinders deliver up to 76 kg (167 lbs) of downward force and 50 kg (110 lbs) of thrust capability for serious leveling work. Functional Rear Ripper: Equipped with a hydraulically operated rear ripper assembly for breaking up packed terrain. Scale Details: Features an opening cab door, articulated bogie track suspension, and a working exhaust rain cap.
JD 1/14 DXR2 Hydraulic Earth Dozer (Pre-Assembled & Painted)
Pre-Installed 9-Channel 2.4GHz Radio Transmitter & Receiver
Pre-Installed Brushless Hydraulic Pump Unit & Hydraulic System
Installed Drive Motors, Valve Servos, and ESCs
Detailed Maintenance & Hydraulic Wiring Manual
Hydraulic Pressure Bypass Caution: The factory-preset pressure valve on the DXR2 is tuned specifically for its cylinder seals. Avoid overriding or screwing down the pressure adjustment switch, as over-pressurizing can damage internal line fittings and valve blocks. Crawler Track Tensioning: Track tension must be checked regularly. Operating with loose tracks risks throw-offs during tight pivot turns on dirt, while over-tightening can overload the 1:256 drive planetary gearboxes.Ripper & Blade Operation Order: When working in compact soil, use the rear ripper to loosen the top layer of earth first before attempting to push full loads with the front blade to reduce heat buildup in the pump system.Cold Starts & Fluid Viscosity: Due to the machine's heavy duty pump reservoir, run the hydraulic pump at a low idle for 1–2 minutes before working under heavy load, especially if operating in colder ambient temperatures.
Alloy Zinc and Alloy Aluminum Casting (except Track and Hydraulic Pump)
Weld Steel Bucket
9 Channel 2.4GHZ Radio
Heavy Duty Hoses (OD 3.2mm Nylon, ID 2.2mm)
Main Heavy Duty Hoses (OD 4mm Nylon, ID 2.5mm)
Optimized Steel Hydraulic System
Reliable Hydraulic Valve and Adjustable Pump
Brushless Hydraulic System
Full Metal Scale
All Terrain Metal Crawler
540 Brushed Monster Torque Motor
Full Metal Transmission (1:256 Gear Ratio)
Run Time is: 38 Minutes (5300mAh Battery)
Chrome Steel Oil Pump (47.5mm x 35mm x 36mm)
Bucket Capacity: 494949 mm_
Maximum Bucket Force (Down): 76kg / 167pounds
Maximum Bucket Force (Up): 50kg / 110pounds
Maximum Bucket Force (Thrust): 50kg / 110pounds
Driving Speed: 408 Meter Per hour
Scale: 1:14
Length: 27in / 685mm
Width: 13.8in / 351mm
Height: 12.7in / 323mm
Bucket Height: 6.87in / 174.6mm
Maximum Bucket Up and Down Angle: 29 degrees

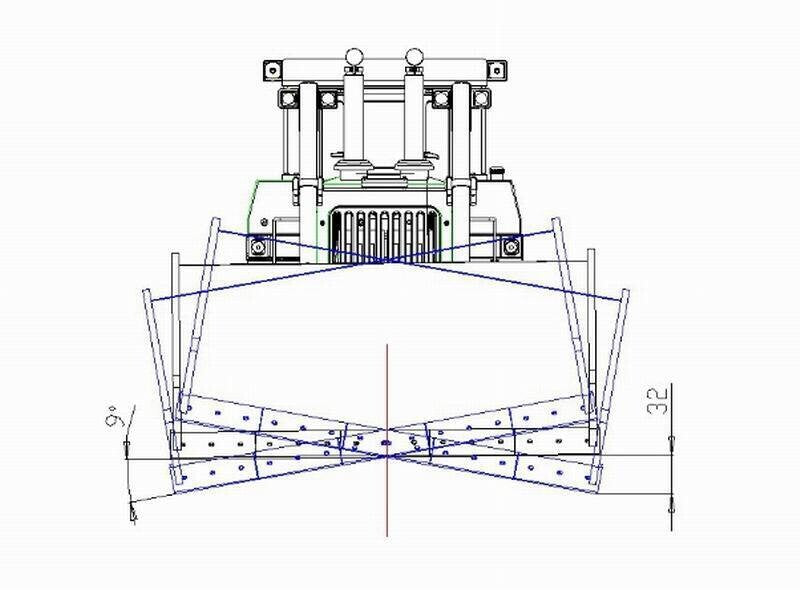

Maximum Bucket Tilt Angle (Left and Right): 9 degrees

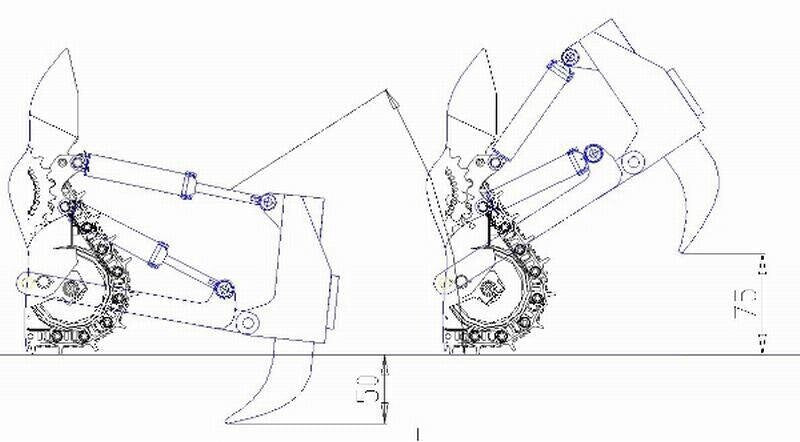

Maximum Ripper Depth of the Ground: 1.97in / 50mm
Total Mass Load: 37kg / 82LBs
Operating Oil Pressure: 25Bar, 362.5psi
Dead Weight: 26kg / 57LBs
30 Days Limited Warranty
Main Power Battery: 3S (11.1V) short-size LiPo battery with XT60 connector (Max size: 140 x 40 x 44 mm).
Charger: Compatible LiPo balance charger.
Transmitter Batteries: AA batteries for the 2.4GHz controller.
Hydraulic Fluid: AW ISO 32 or ISO VG46 hydraulic oil (approx. 250–300 ml).
