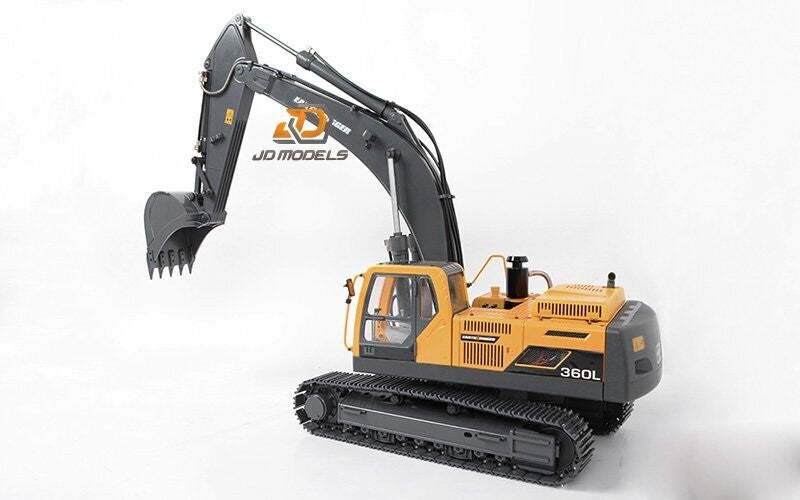

JD 1/14 360L Hydraulic Excavator- RTR
N$45,000.00
Sale price
N$45,000.00
Regular price
🚨 PRE-ORDER
This product is available for pre-order. To secure your unit, please contact us directly and we'll guide you through the process.
📦 Estimated Lead Time: 4 to 6 weeks from order confirmation (If unit is available at Supplier)
⚡ Limited units available — don't miss out.
📧 Email us:
- benr@gehobbies.com
- tjr@gehobbies.com
💬 WhatsApp: +264 81 372 8129
In the unlikely event that your order cannot be fulfilled, you will receive a full refund — no questions asked.

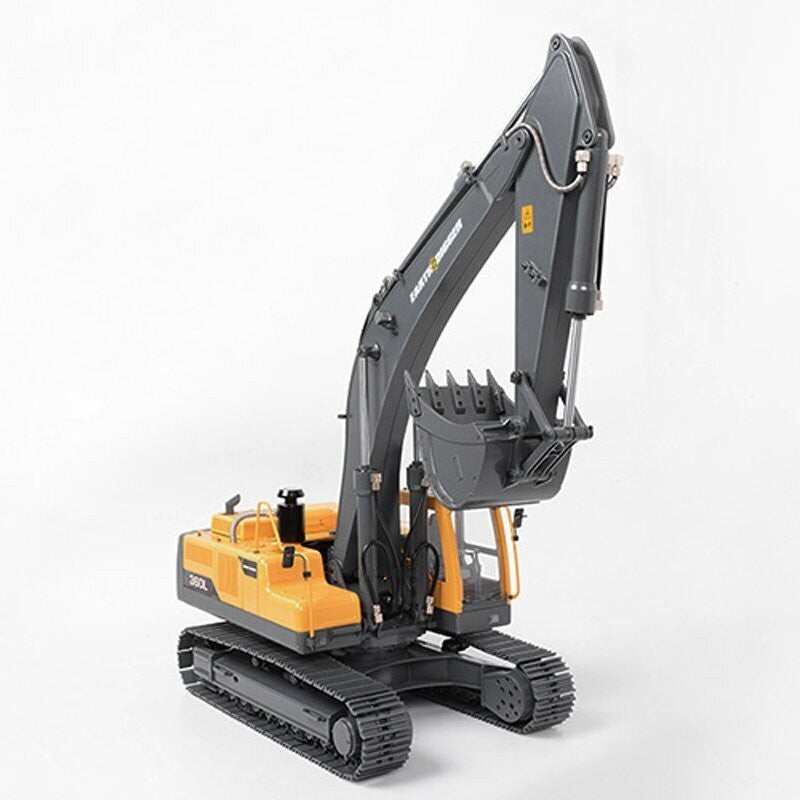

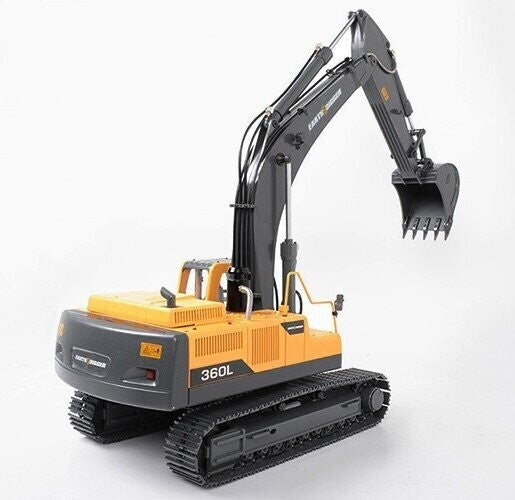

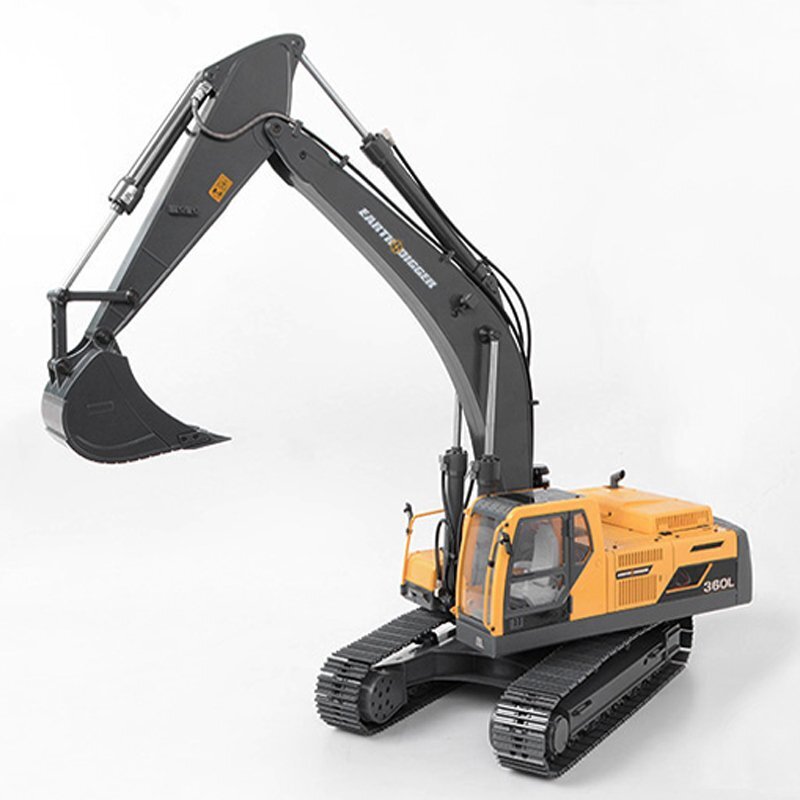

Experience unmatched digging force and massive earth-moving power with the JD 1/14 360L Hydraulic Excavator (RTR). Tipping the scales at a hefty 26 kg (57 lbs), this heavyweight 1/14 scale excavator is constructed from precision zinc alloy and aluminum castings to deliver maximum stability during tough excavation jobs. Arriving factory-assembled and painted, the 360L features a reliable high-pressure hydraulic pump operating at 2.5 MPa, steel-machined fluid lines, an endless 360-degree rotating upper chassis, and heavy-duty alloy tracks. With up to 15 kg (33 lbs) of breakout digging force and a massive 70 kg (154 lbs) arm lifting capacity, this machine is built for continuous, heavy-duty scale excavation
Massive All-Metal Chassis: Zinc alloy and aluminum cast superstructure paired with 50 mm wide alloy zinc molded tracks for extreme stability and scale weight. High-Power Hydraulics: Driven by a steel-machined hydraulic pump and 60A brushless ESC system operating at 2.5 MPa working pressure. Extreme Digging & Lifting Power: Generates up to 15 kg (33 lbs) of digging force and up to 70 kg (154 lbs) of total lifting capacity. Endless 360° Rotation: High-torque brushless slewing drive motor allows continuous 360-degree rotation of the superstructure. Scale Details: Pre-installed high-intensity light sockets, scale operator cab, and powder-coated industrial finish.
JD 1/14 360L Hydraulic Excavator (Pre-Assembled & Painted)
Pre-Installed 8-Channel 2.4GHz Radio System
Pre-Installed Hydraulic System (Pump, Cylinders & Valves)
Pre-Installed Brushless Drive & Slewing Motors
User Manual & Hydraulic Wiring Diagram
Pre-Installed Sound System

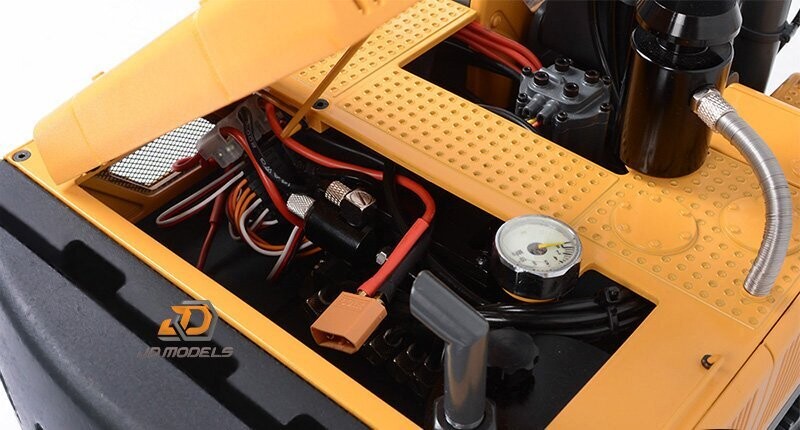

Battery Tray Size Check: The battery compartment on the JD 360L fits batteries up to 160 mm x 51 mm x 73 mm. Take advantage of this deep compartment by running high-capacity 3S LiPo packs (e.g., 5000mAh+) to extend session runtime. Weight & Transport Management: At 26 kg (57 lbs) without packing, do not attempt to transport or position the excavator by grabbing the boom or arm assembly. Always lift directly from under the lower undercarriage tracks to avoid stressing the slew drive and superstructure.Pre-Operating Bleed Routine: Before pushing hard soil, cycling the boom, arm, and bucket cylinders through their full stroke 3–4 times at low RPM purges trapped air inside the lines and stabilizes hydraulic pressure.
Alloy Zinc and Alloy Aluminium Casting (except Hydraulic Pump)
Custom 8 Channel 2.4Ghz Radio
Preinstalled High Intensity Light Sockets (Wire and bulbs are not included)
Optimized Steel Hydraulic System
Scale Driving Figure Ready (Not included)

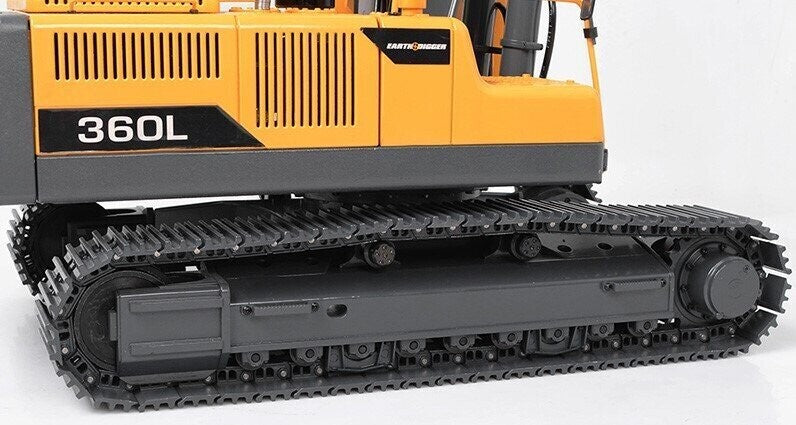

Alloy Zinc Moulded Tracks (50mm Width)
Efficient Undercarriage
Reliable Hydraulic Valve and Adjustable Pump
Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
Undercarriage May Rotate 360 Degrees (Endless)
Powder-coated in Yellow and Grey
Massive Brushless System (Including driving and turning)
Hydraulic System 60A Brushless ESC, Driving and Turning System 30A Brushless ESC
270Kv Brushless Monster Torque Motor, Shaft dia. 3.0mm
XT60 Power Plug Female
Run Time: 20 Minutes based on 4200mAh, 11.1V Battery
Steel Machined Oil Pump (60mm x 60mm x 93mm)
Digging Force: 15kg / 33lbs
Max Lifting Force: 70Kg / 154lbs
Driving Speed: 360 Meter per hour
Scale: 1:14
Length: 823mm / 32.4in
Width: 234mm / 9.21in
Height: 260mm / 10.2in
Operating Oil Pressure: 2.5Mpa

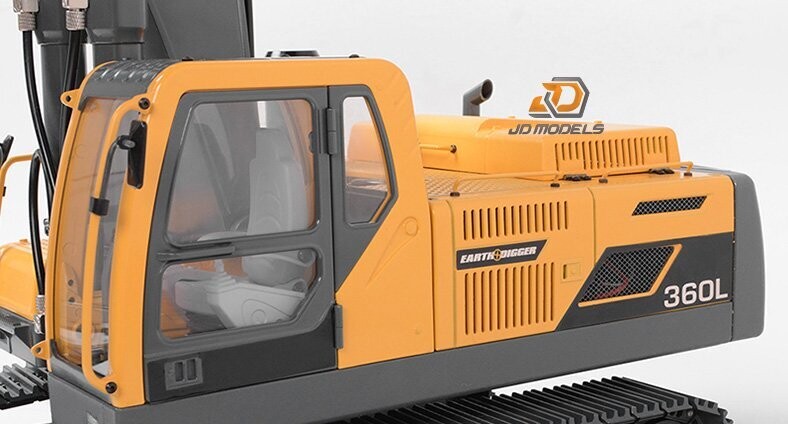

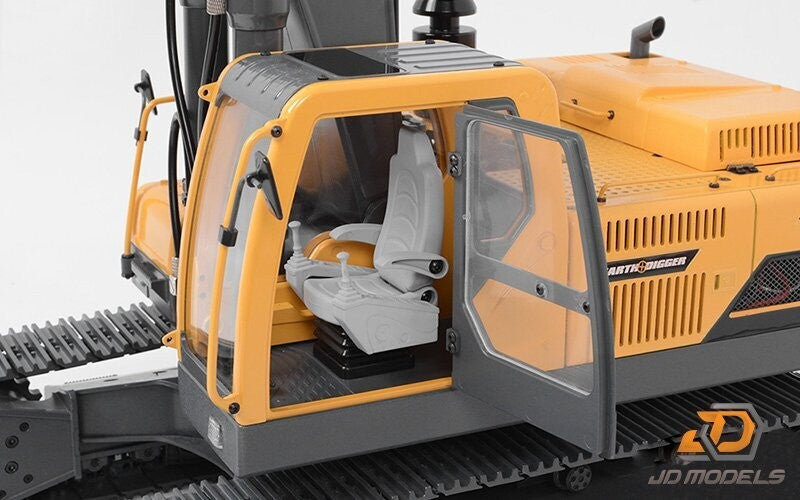

Inside Cab Length: 4.72in / 120mm
Inside Cab Width: 2.55in / 65mm
Inside Cab Height: 4.21in / 107mm
Deadweight: 26Kg / 57lbs
30 Days Limited Warranty
Main Power Battery: 3S (11.1V) LiPo battery with XT60 connector (Recommended: 4200mAh–5000mAh).
Charger: Compatible LiPo balance charger.
Transmitter Batteries: 4x AA batteries for the radio controller.
Hydraulic Fluid: ISO VG32 or ISO VG46 hydraulic oil.
