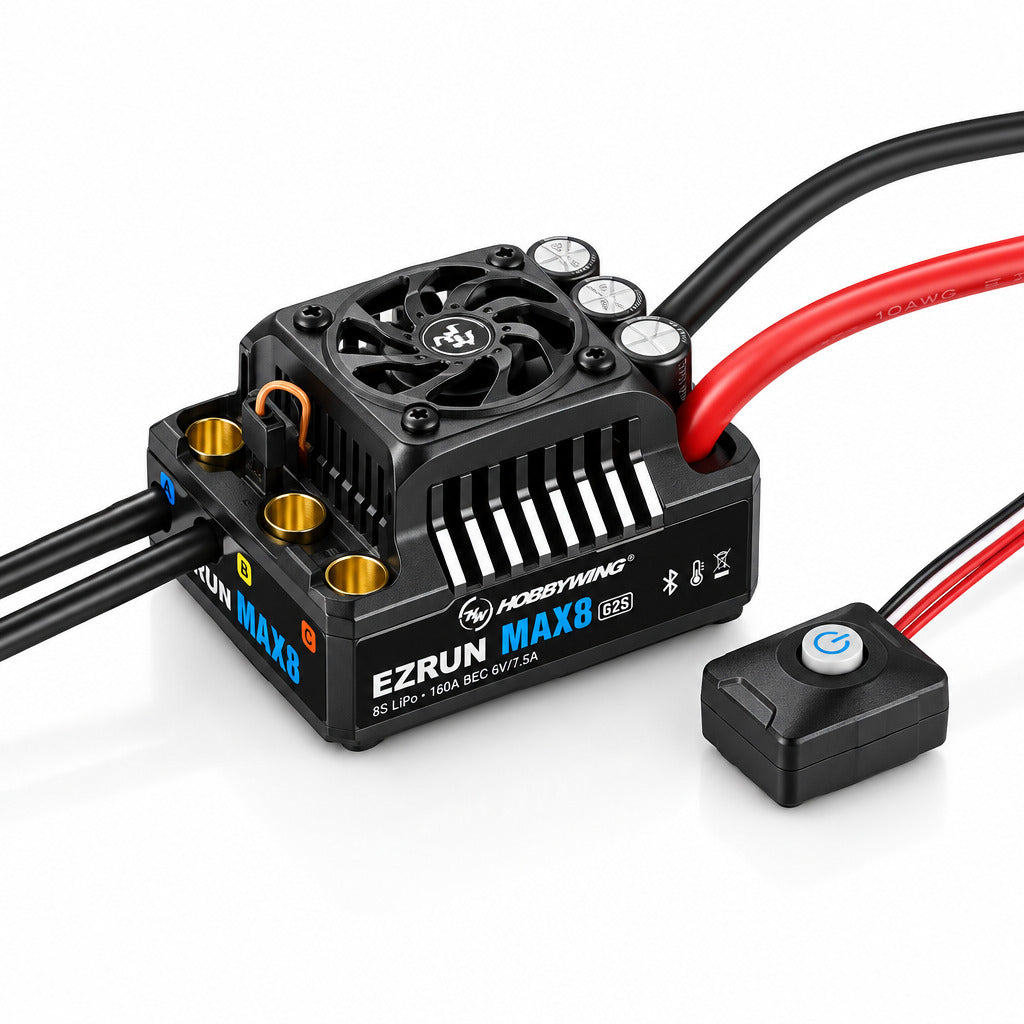

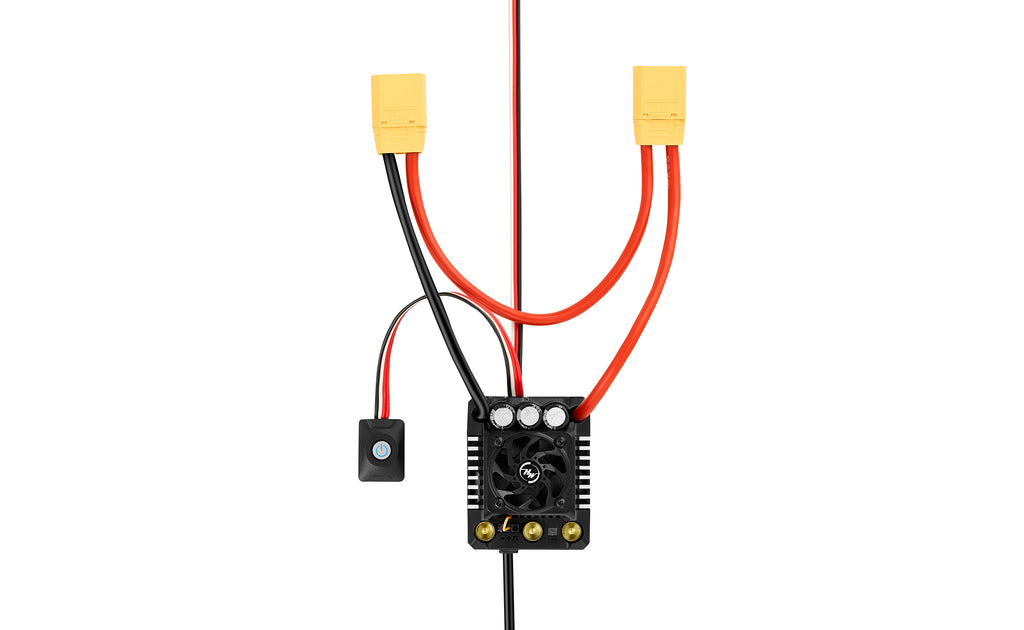

Hobbywing EzRun Max8 G2S 160A ESC

Hobbywing EzRun Max8 G2S 160A ESC

N$3,225.38
N$3,225.38
Skip to product information
Hobbywing EzRun Max8 G2S 160A ESC
  • Hobbywing EzRun Max8 G2S 160A ESC
  • Hobbywing EzRun Max8 G2S 160A ESC
  • Hobbywing EzRun Max8 G2S 160A ESC
  • Hobbywing EzRun Max8 G2S 160A ESC
Hobbywing EzRun Max8 G2S 160A ESC

Hobbywing EzRun Max8 G2S 160A ESC

N$3,225.38
N$3,225.38
8 left

Unleash the ultimate power and reliability in your 1/8 scale build with the Hobbywing EzRun Max8 G2S Brushless ESC. Building on the legendary performance of its predecessor, the G2S introduces a game-changing built-in Bluetooth module right into the electronic switch, allowing you to effortlessly tweak settings, check real-time data logs, and perform firmware updates directly from your smartphone via the HW Link app.
In the Box

1) Hobbywing EzRun Max8 G2S ESC (with pre-wired input/output leads)
(1) Product Manual Promotional Decal Sheet / Setup Accessories
More Information

Engineered to handle brutal terrain and demanding power systems, the Max8 G2S features an innovative waterproof sensor interface, a robust ultra-powerful adjustable BEC, and support for up to 6S LiPo power. Whether you are bashing through snow, mud, or tearing up the track, this ESC delivers silky-linear throttle response, intense 32-degree turbo timing capabilities, and bulletproof thermal management to keep you running at the front of the pack.
Features

Built-in Bluetooth Module: Integrated directly into the electronic power switch for direct mobile app connection (HW Link V2) to adjust parameters, view data logs, and handle updates without extra external dongles. Innovative Waterproof Sensor Interface: Specially designed to seal out moisture, dust, snow, and sediment, ensuring flawless performance in all weather conditions. Ultra-Powerful Adjustable BEC: Features a switch-mode BEC supporting 6V, 7.4V, or 8.4V output options (6A continuous / 15A peak) to effortlessly drive high-torque, high-voltage steering servos. Advanced Turbo Timing: Supports up to 32 degrees of adjustable turbo timing, unlocking an aggressive ~25% RPM boost when paired with compatible motors like the EzRun 4278SD. Real-Time Data Logging: Monitor key running metrics, temperatures, and data history for up to the last 10 minutes directly on your phone. Comprehensive Protection Suite: Includes low-voltage cutoff, ESC and motor thermal protection, signal loss/failsafe protection, and current protection.

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.Built-in Bluetooth Module: Integrated directly into the electronic power switch for direct mobile app connection (HW Link V2) to adjust parameters, view data logs, and handle updates without extra external dongles. Innovative Waterproof Sensor Interface: Specially designed to seal out moisture, dust, snow, and sediment, ensuring flawless performance in all weather conditions. Ultra-Powerful Adjustable BEC: Features a switch-mode BEC supporting 6V, 7.4V, or 8.4V output options (6A continuous / 15A peak) to effortlessly drive high-torque, high-voltage steering servos. Advanced Turbo Timing: Supports up to 32 degrees of adjustable turbo timing, unlocking an aggressive ~25% RPM boost when paired with compatible motors like the EzRun 4278SD. Real-Time Data Logging: Monitor key running metrics, temperatures, and data history for up to the last 10 minutes directly on your phone. Comprehensive Protection Suite: Includes low-voltage cutoff, ESC and motor thermal protection, signal loss/failsafe protection, and current protection.

Specifications

Application - 1/8 Scale On-Road, Short Course Trucks, and Monster Trucks
Type - Sensored / Sensorless Brushless (Works with both)
Continuous / Peak Current - 160A / 1050A
LiPo Input - 3-6S LiPo
BEC Output - 6V / 7.4V / 8.4V Adjustable (Switch-mode: 6A Continuous / 15A Peak)
Motor Limits (4S LiPo) KV = 3000 or less (4268 size motor)
Motor Limits (6S LiPo) KV = 2400 or less (4278 size motor)
Dimensions (L x W x H) - 60 x 48 x 40.5 mm
Weight - 192g (including wires and connectors)
Programming - Built-in Bluetooth (HW Link App via iOS/Android)
Input / Output Connectors - Input: XT90 / Output: 6.5mm Gold Female Plugs
