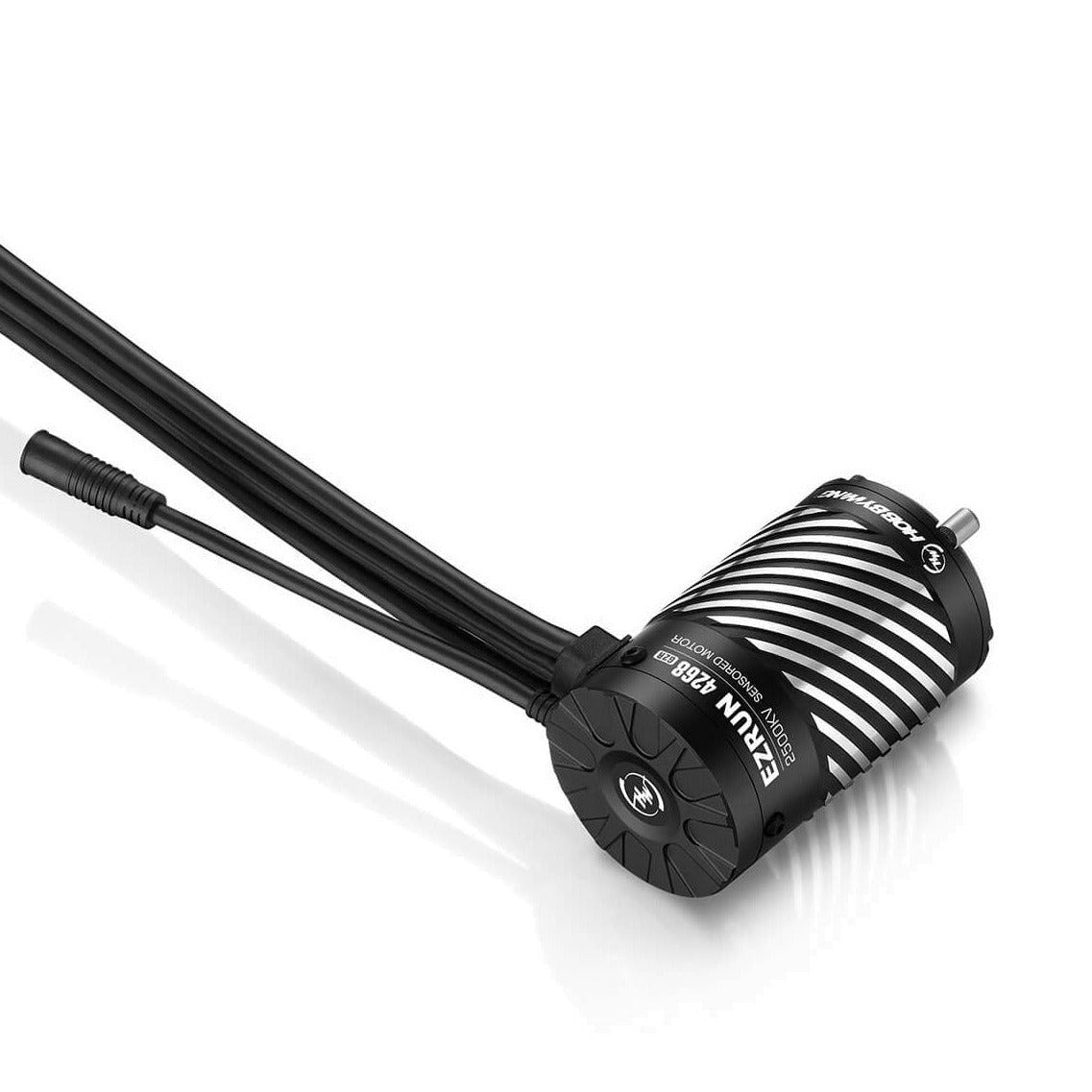

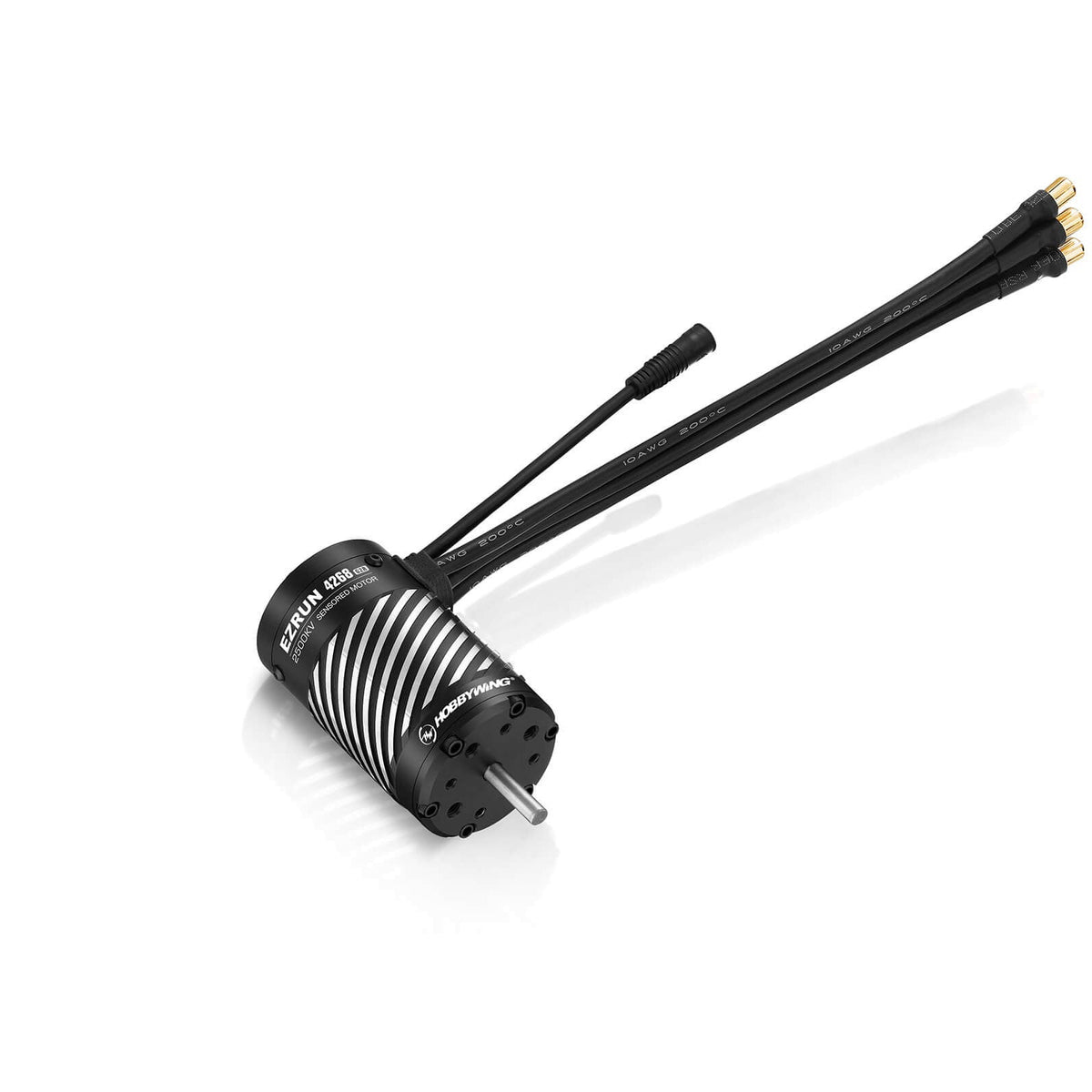

Pair your 1/8 scale build with the ultimate power plant: the Hobbywing EzRun 4268SD G2R 2500KV Sensored Brushless Motor. Designed hand-in-glove to integrate with the Max8 G2S ESC, this motor features automatic ID recognition, unlocking telemetry-backed motor thermal protection and absolute buttery-smooth throttle linearity from a dead stop.
In the Box

(1) Hobbywing EzRun 4268SD G2R 2500KV Sensored Motor (1) Product Manual Sensored Connection Harness / Setup Accessories
More Information

Built around a high-performance 4-pole rotor equipped with high-strength, heat-resistant sintered Nd-Fe-B magnets, the G2R dishes out brutal torque and explosive acceleration without sacrificing efficiency. Combined with an independent built-in magnetic ring for pure Hall sensor signal output and an innovative waterproof/dustproof sensor harness design, this motor is engineered to dominate the track or bash spot through any weather condition.
Features

Seamless ESC Integration: Fully optimized for the Hobbywing EzRun Max8 G2S ESC, allowing the ESC to auto-recognize the motor type for advanced thermal protection and closed-loop data sharing. High-Performance 4-Pole Rotor: Utilizes widened, high-temperature-resistant sintered Nd-Fe-B magnetic tiles to output massive torque and raw acceleration. Pure Signal Hall Sensor: An independent built-in magnetic ring guarantees interference-free rotor position tracking for flawless low-speed sensored startups. All-Weather IP67 Protection: Features an upgraded waterproof/dustproof sensor interface layout and rubber-covered high-precision bearings to effortlessly handle mud, snow, and wet tracks. Heavy-Duty Construction: Built with a high-rigidity CNC-machined aluminum housing, high-purity copper windings, 0.2mm silicon steel laminations, and a high-toughness stainless steel output shaft.

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.Seamless ESC Integration: Fully optimized for the Hobbywing EzRun Max8 G2S ESC, allowing the ESC to auto-recognize the motor type for advanced thermal protection and closed-loop data sharing. High-Performance 4-Pole Rotor: Utilizes widened, high-temperature-resistant sintered Nd-Fe-B magnetic tiles to output massive torque and raw acceleration. Pure Signal Hall Sensor: An independent built-in magnetic ring guarantees interference-free rotor position tracking for flawless low-speed sensored startups. All-Weather IP67 Protection: Features an upgraded waterproof/dustproof sensor interface layout and rubber-covered high-precision bearings to effortlessly handle mud, snow, and wet tracks. Heavy-Duty Construction: Built with a high-rigidity CNC-machined aluminum housing, high-purity copper windings, 0.2mm silicon steel laminations, and a high-toughness stainless steel output shaft.

Specifications

Scale - 1/8th
Type - Brushless Sensored
KV Rating - 2500KV
LiPo Cells - 3-4S LiPo
Pole Count - 4-Pole
No-Load Current - 5.0A
Outer Diameter - 42mm
Length - 68mm
Shaft Diameter - 5mm
Weight - 360g
Bearings - Front: D16 x D5 x T5 mm / Rear: D11 x D5 x T5 mm
