COMING SOON – GET READY!

The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. It was developed from the Piper PA-11. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner towing and glider towing.
As a relative of the popular 1400mm J-3 Cub, the 1700mm PA-18 Super Cub retains great flight characteristics while offering increased power and wingspan.Thanks to its functional flaps, high-lift airfoil, rugged landing gear and oversized balloon tires- the 1700mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.
In the Box

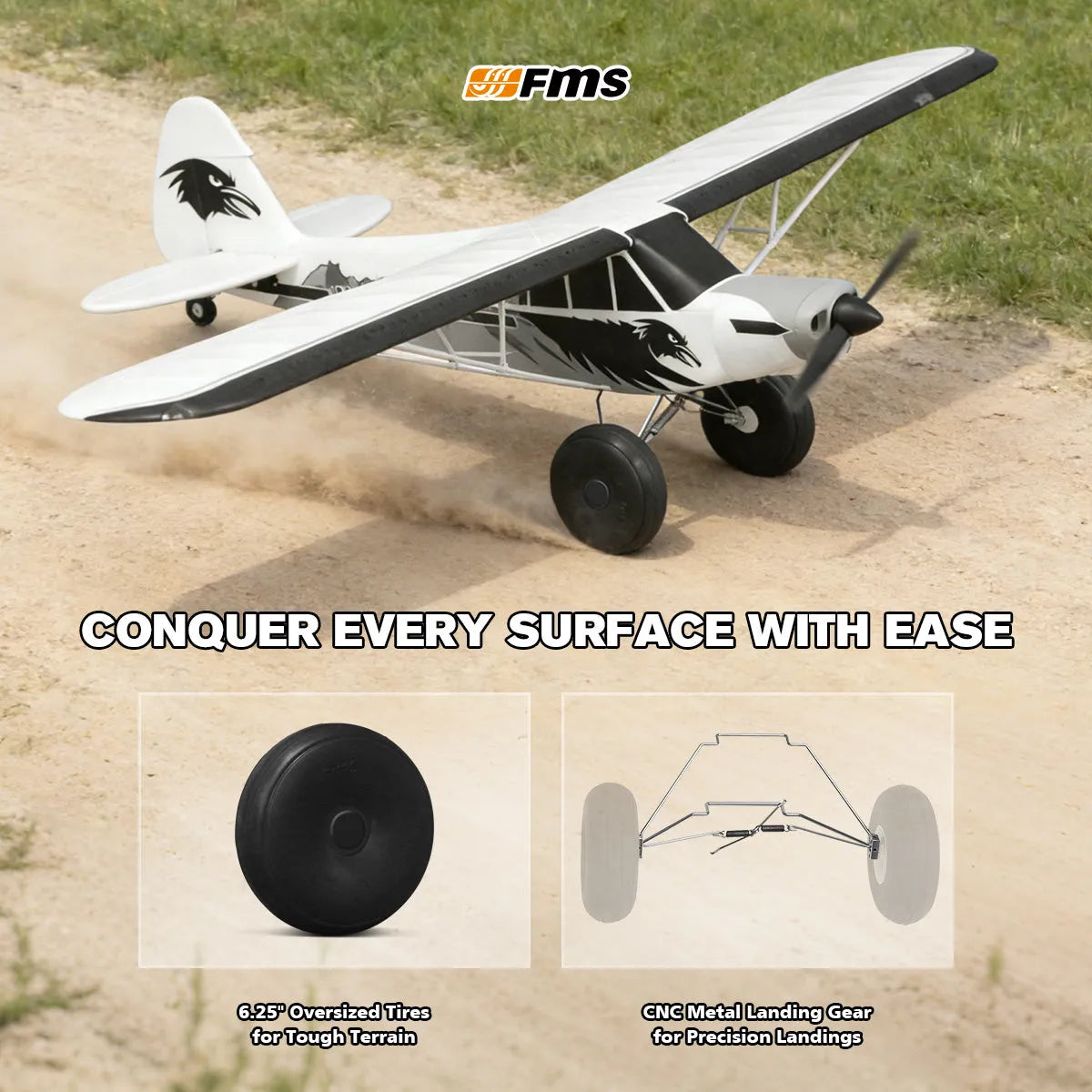

Included in BOTH Versions (PNP & RTF)Airframe Components:Segmented EPO foam fuselage (main section + tail tailpiece).2-piece main wing set with integrated carbon fiber spars. Horizontal and vertical stabilizer units. Scale functional wing struts and hardware. Pre-installed Power System & Electronics:Motor: 3541-KV750 Outrunner motor. ESC: Predator 45A Brushless ESC with XT60 connector. Servos: 6x 17g digital servos (ailerons, flaps, elevator, rudder). Lighting: Pre-installed LED navigation and landing lights. Flight Stabilization: FMS Reflex V2 gyro system (included in most standard regional retail packages).Landing Gear & Hardware:Heavy-duty CNC metal landing gear structure. Oversized 6.25-inch balloon tundra tires + steerable tailwheel assembly. 12x7.5 2-blade nylon propeller and spinner. Ball-linked pushrod hardware, linkage rods, and assembly screws. Instruction manual.

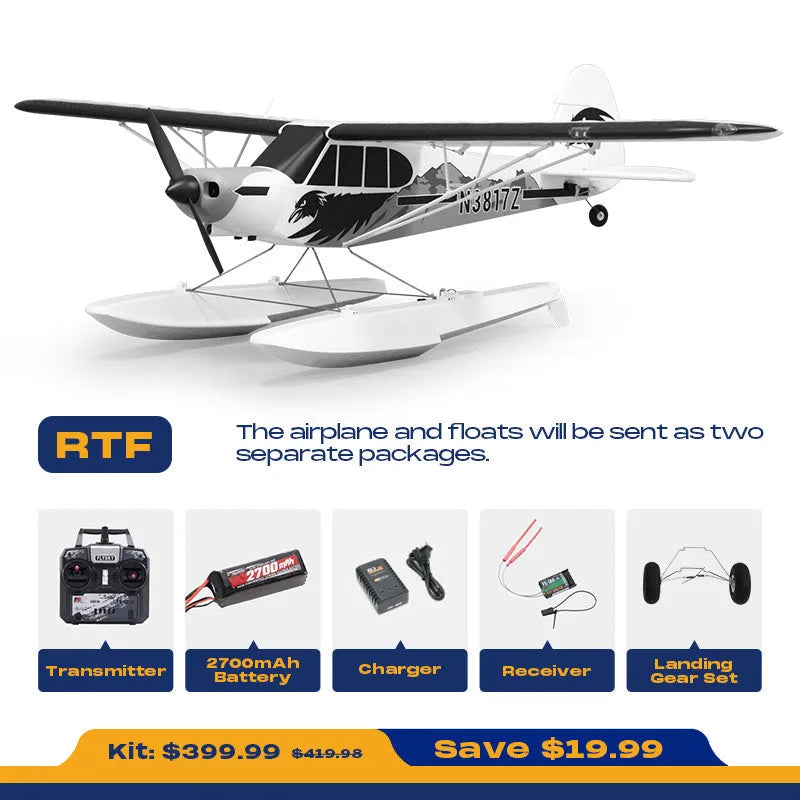

RTF - Transmitter & Receiver: FMS 6-channel 2.4GHz radio system. Flight Battery: 14.8V 4S LiPo battery (typically 2200mAh–2600mAh with XT60 plug).

More Information

RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
Specifications

Wingspan 1700MM/66.9in
Overall length 1136MM/44.7in
Flying weight 2100g
Motor size 3541-KV750
ESC 45A
Servo 17g*6
Radio 6 Channel
CG (center of gravity) 80-85mm(From leading edge)
Prop Size 12*7.5, 2-blade
Recommended battery 14.8V 2200-2600mAh 4s 35C
Battery Connector XT60
Aileron Yes
Elevator Yes
Rudder Yes
Flaps Yes
Retracts No
LED Yes
Approx. flying duration 4-5 minutes
Minimum age recommendation 14+
Experience level intermediate
Assembly time around 40 minutes
Wing load 50g/dm²； 0.11oz/in2
Wing area 42dm² ；651sq.in
Needed to Complete

RTF - Nothing

PNP - Transmitter, receiver, battery, and charger are not included.
